FHVR120 FAST RECOVERY HIGH VOLTAGE RECTIFIER DIODE

FHVR120 Description

www.eicsemi.com FHVR120 PRV : 2000 Volts Io : 1.0 Ampere FAST RECOVERY HIGH VOLTAGE RECTIFIER DIODE DO - 41 .

FHVR120 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy

📥 Download Datasheet

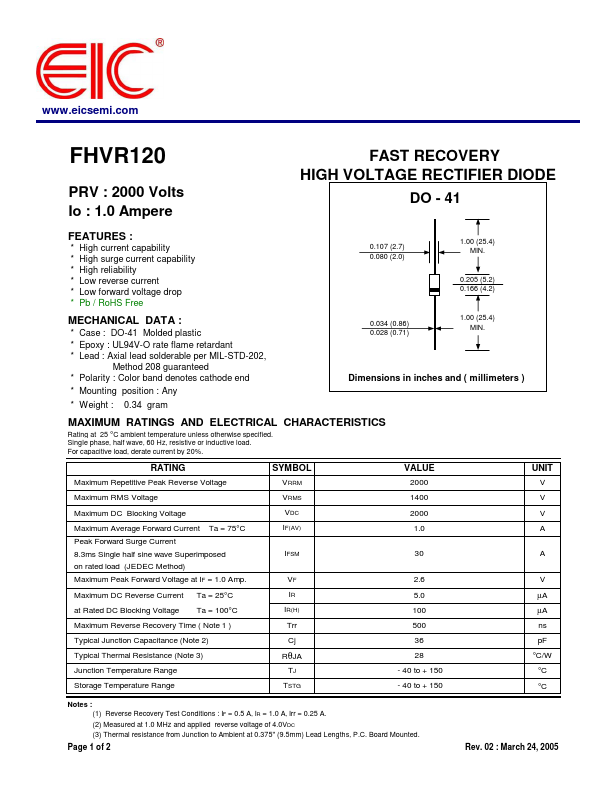

Preview of FHVR120 PDF

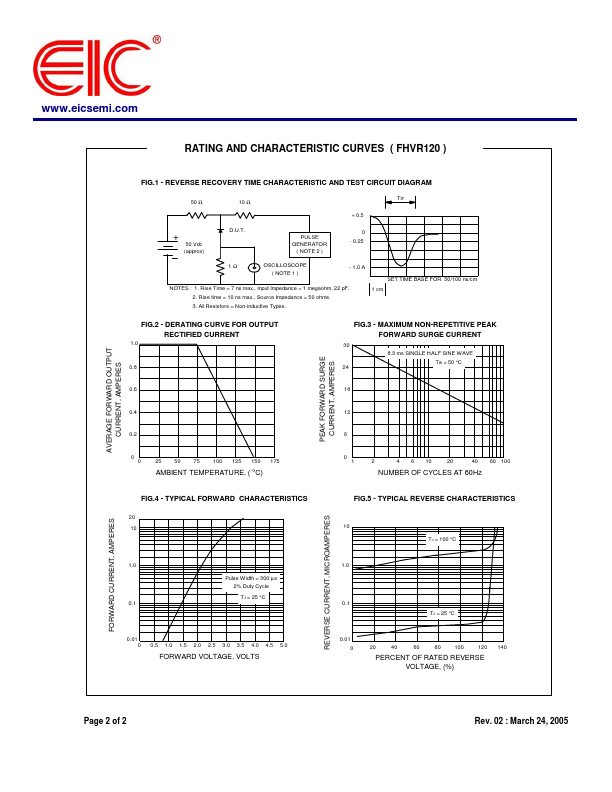

datasheet Preview Page 2

Datasheet Details

Part number
FHVR120
Manufacturer
EIC
File Size
31.15 KB
Datasheet
FHVR120-EIC.pdf
Description
FAST RECOVERY HIGH VOLTAGE RECTIFIER DIODE
