FKBL408 - FAST RECOVERY BRIDGE RECTIFIERS

This page provides the datasheet information for the FKBL408, a member of the FKBL400 FAST RECOVERY BRIDGE RECTIFIERS family.

Datasheet Summary

Features

  • :.
  • High case dielectric strength of 2000 VAC @1 Sec.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Ideal for printed circuit board.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – FKBL408

Datasheet Details

Part number FKBL408
Manufacturer EIC
File Size 45.63 KB
Description FAST RECOVERY BRIDGE RECTIFIERS
Datasheet download datasheet FKBL408 Datasheet

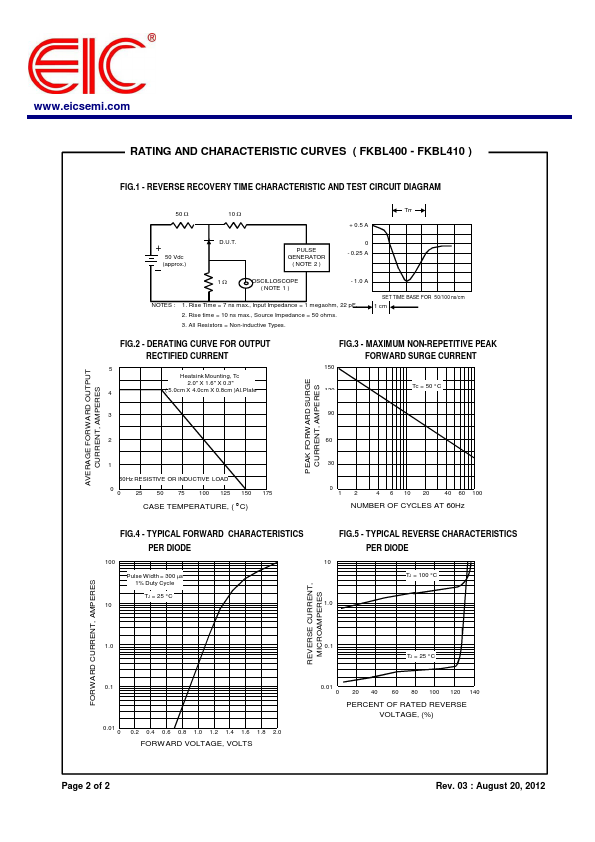

Additional preview pages of the FKBL408 datasheet.

📁 Similar Datasheet

  • FKB8729 - STANDARD KEYBOARD 104/105-Key Keyboard (Fujitsu Media Devices Limited)
  • FKBA0018A - N-Channel MOSFET (FETek)
  • FKBA0020A - N-Channel MOSFET (FETek)
  • FKBA0024A - N-Channel MOSFET (FETek)
  • FKBA0036 - N-Channel MOSFET (FETek)
  • FKBA0040 - N-Channel MOSFET (FETek)
  • FKBA0048 - N-Ch 100V Fast Switching MOSFET (FETek)
  • FKBA0048A - N-Ch 100V Fast Switching MOSFET (FETek)
  • FKBA0094 - N-Ch 100V Fast Switching MOSFET (FETek)
  • FKBA0094A - N-Channel MOSFET (FETek)
Other Datasheets by EIC
  • FKBL400 - FAST RECOVERY BRIDGE RECTIFIERS
  • FKBL401 - FAST RECOVERY BRIDGE RECTIFIERS
  • FKBL402 - FAST RECOVERY BRIDGE RECTIFIERS
  • FKBL404 - FAST RECOVERY BRIDGE RECTIFIERS
  • FKBL406 - FAST RECOVERY BRIDGE RECTIFIERS
  • FKBL410 - FAST RECOVERY BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

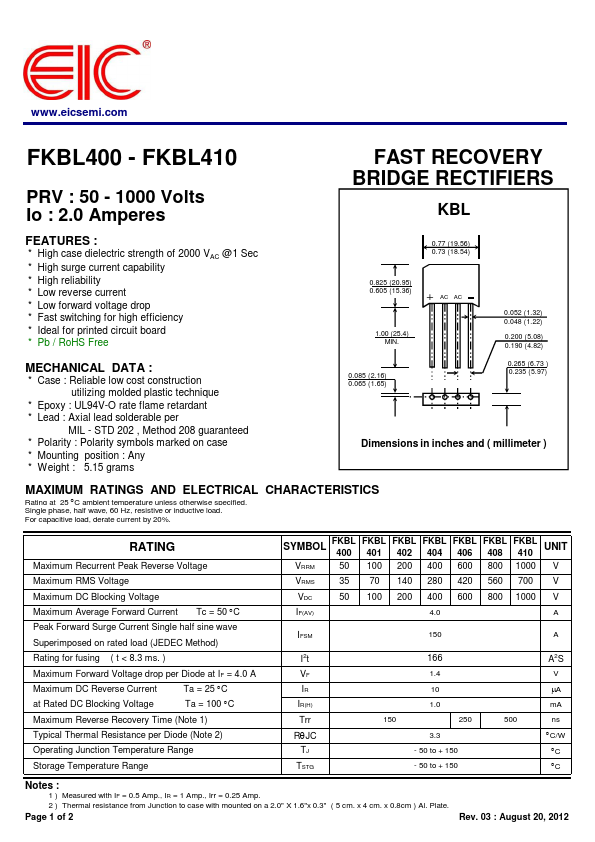

www.eicsemi.com FKBL400 - FKBL410 PRV : 50 - 1000 Volts Io : 2.0 Amperes FAST RECOVERY BRIDGE RECTIFIERS KBL FEATURES : * High case dielectric strength of 2000 VAC @1 Sec * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Ideal for printed circuit board * Pb / RoHS Free MECHANICAL DATA : * Case : Reliable low cost construction utilizing molded plastic technique * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL - STD 202 , Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Any * Weight : 5.15 grams 0.77 (19.56) 0.73 (18.54) 0.825 (20.95) 0.605 (15.36) + AC AC 1.00 (25.4) MIN. 0.085 (2.16) 0.065 (1.65) 0.052 (1.32) 0.048 (1.22) 0.
