FR106, FR101 Datasheet - EIC

FR106, FR101, FAST RECOVERY RECTIFIER DIODES

FR101 - FR107-STR PRV : 50 - 1000 Volts Io : 1.0 Ampere FAST RECOVERY RECTIFIER DIODES DO - 41 .

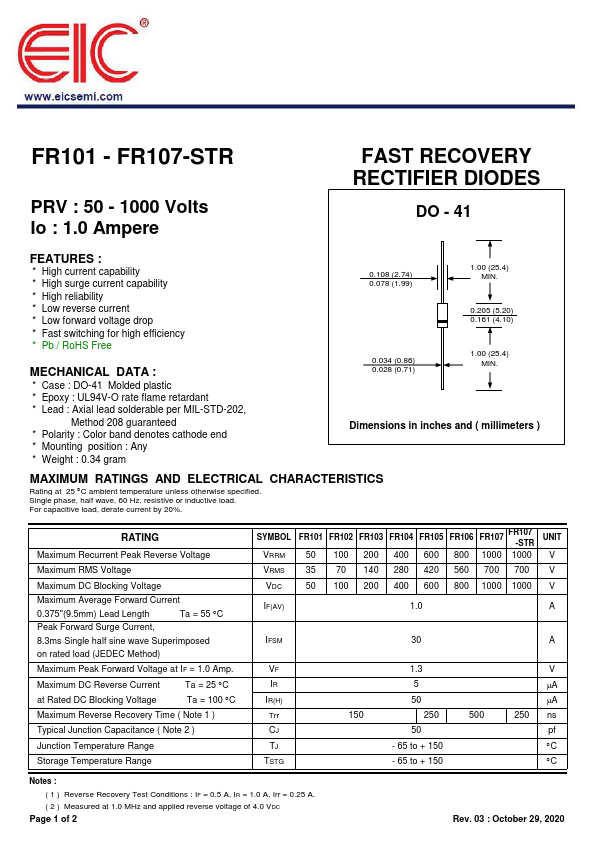

datasheet Preview Page 1 from Datasheet4u.com

FR101-EIC.pdf

FR106 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR106, FR101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FR106, FR101

Manufacturer:

EIC

File Size:

74.30 KB

Description:

FAST RECOVERY RECTIFIER DIODES

Note:

This datasheet PDF includes multiple part numbers: FR106, FR101.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retar
