FR505, FR501 FAST RECOVERY RECTIFIER DIODES

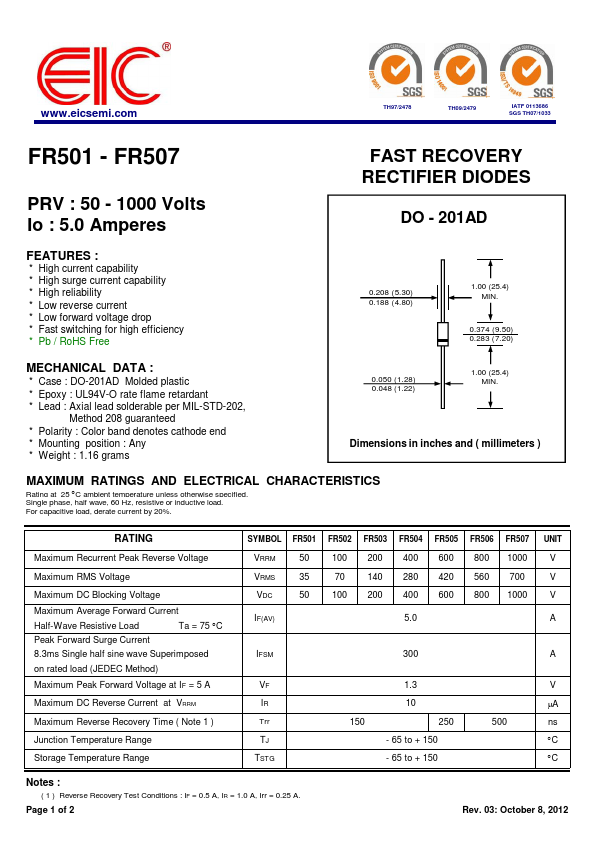

📥 Download Datasheet Datasheet Preview Page 1

Description

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 FR501 - FR507 PRV : 50 - 1000 Volts Io : 5.0 Amperes FAST RECOVERY RECTIFIER DIODE.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR505, FR501. Please refer to the document for exact specifications by model.

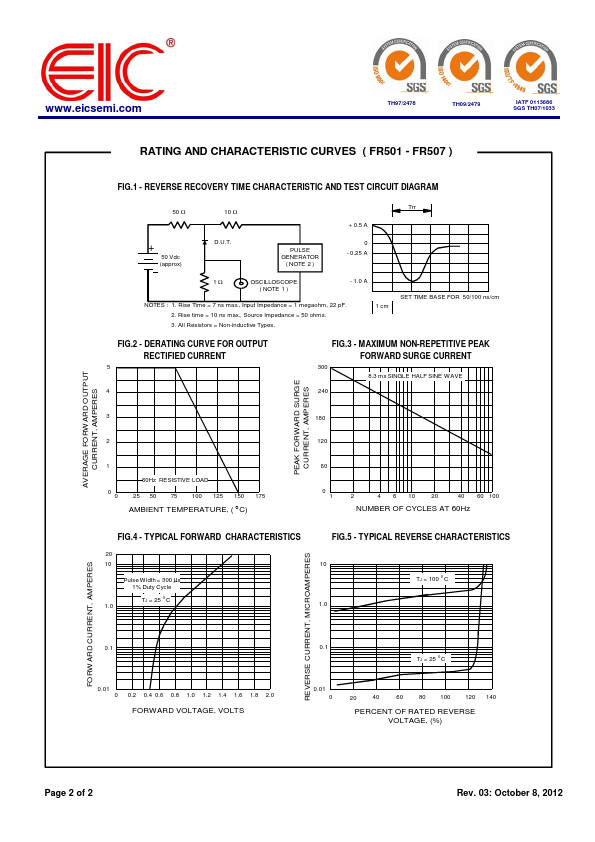

datasheet Preview Page 2

Datasheet Specifications

Part number
FR505, FR501
Manufacturer
EIC
File Size
59.06 KB
Datasheet
FR501-EIC.pdf
Description
FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR505, FR501.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free 0.208 (5.30) 0.188 (4.80) 1.00 (25.4) MIN. 0.374 (9.50) 0.283 (7.20) MECHANICAL DATA :
