FR801 - FAST RECOVERY RECTIFIER DIODES

Datasheet Summary

Features

  • Glass passivated chip junction.
  • Low cost construction.
  • Fast switching for high efficiency.
  • Low reverse leakage.
  • High forward surge current capacity.
  • High temperature soldering guaranteed.
  • 260℃/10 second,0.375″(9.5mm)lead length.
  • at 5 lbs (2.3kg) tension.

📥 Download Datasheet

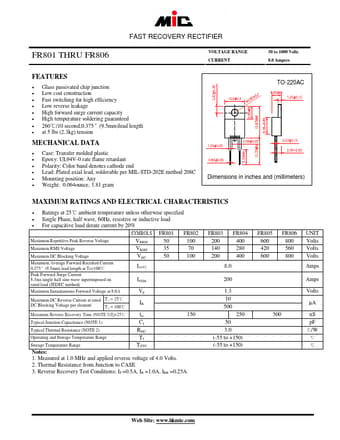

Datasheet preview – FR801
