GBPC1506, GBPC15005 Datasheet - EIC

GBPC1506, GBPC15005, GLASS PASSIVATED SINGLEPHASE BRIDGE RECTIFIERS

TH97/2478 TH09/2479 IATF 0060636 SGS TH07/1033 GBPC15005 - GBPC1510 PRV : 50 - 1000 Volts Io : 15 Amperes .

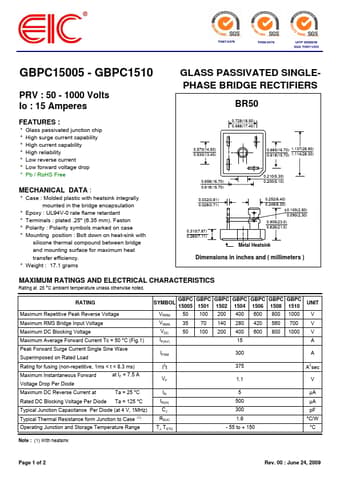

datasheet Preview Page 1 from Datasheet4u.com

GBPC15005-EIC.pdf

GBPC1506 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC1506, GBPC15005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC1506, GBPC15005

Manufacturer:

EIC

File Size:

94.28 KB

Description:

GLASS PASSIVATED SINGLEPHASE BRIDGE RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: GBPC1506, GBPC15005.
Please refer to the document for exact specifications by model.

Features

* :
* Glass passivated junction chip
* High surge current capability
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge e
