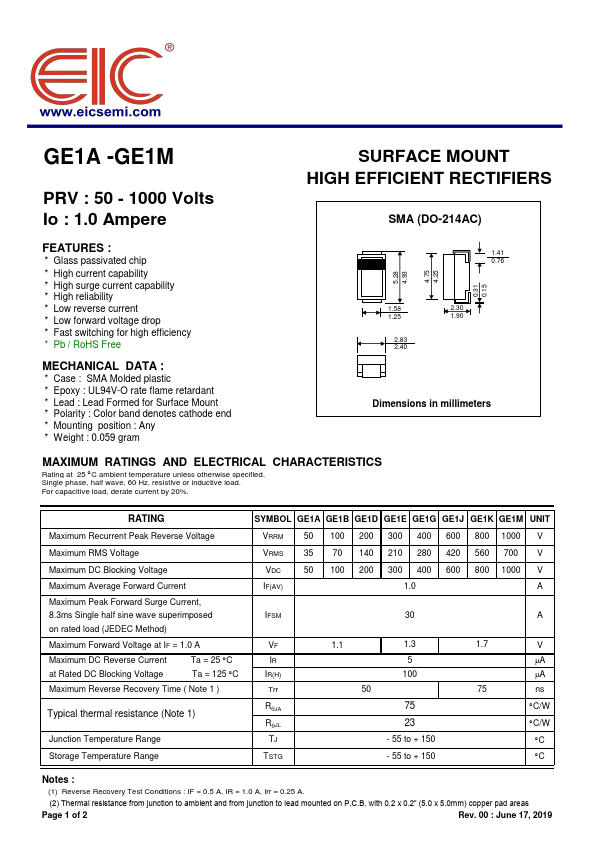

GE1E
FEATURES
:
- Glass passivated chip
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Fast switching for high efficiency
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : SMA Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Lead : Lead Formed for Surface Mount
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.059 gram
5.28 4.93 4.75 4.25 0.31 0.15
1.58 1.25
2.83 2.40
1.41 0.76
2.30 1.90
Dimensions in millimeters

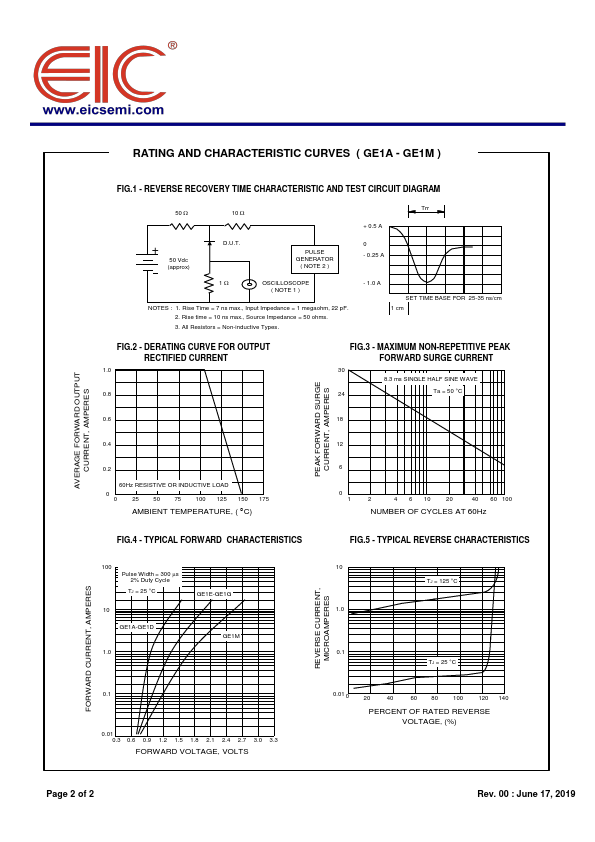

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
Maximum Peak Forward Surge Current,
8.3ms Single half sine wave superimposed on rated load (JEDEC Method)
Maximum...
