GR2G, GR2A GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS

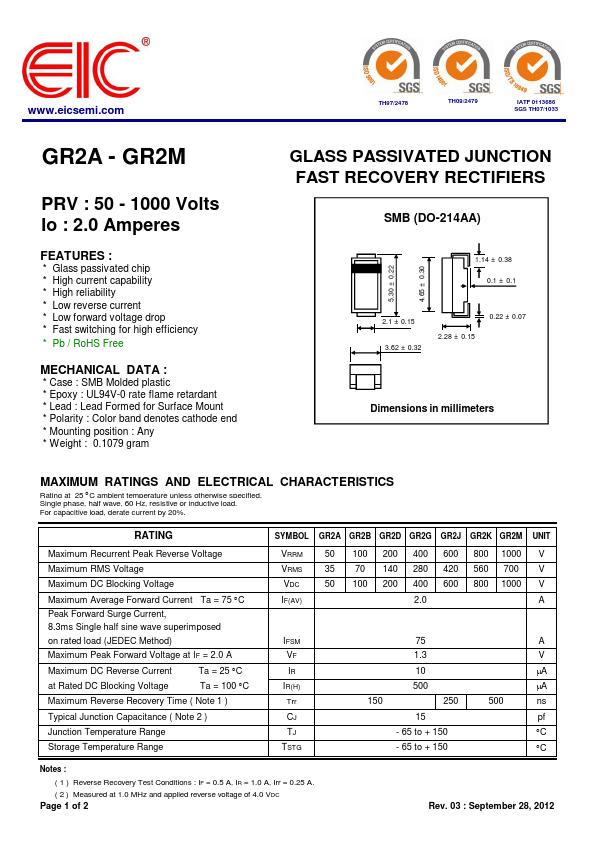

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 GR2A - GR2M PRV : 50 - 1000 Volts Io : 2.0 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GR2G, GR2A. Please refer to the document for exact specifications by model.

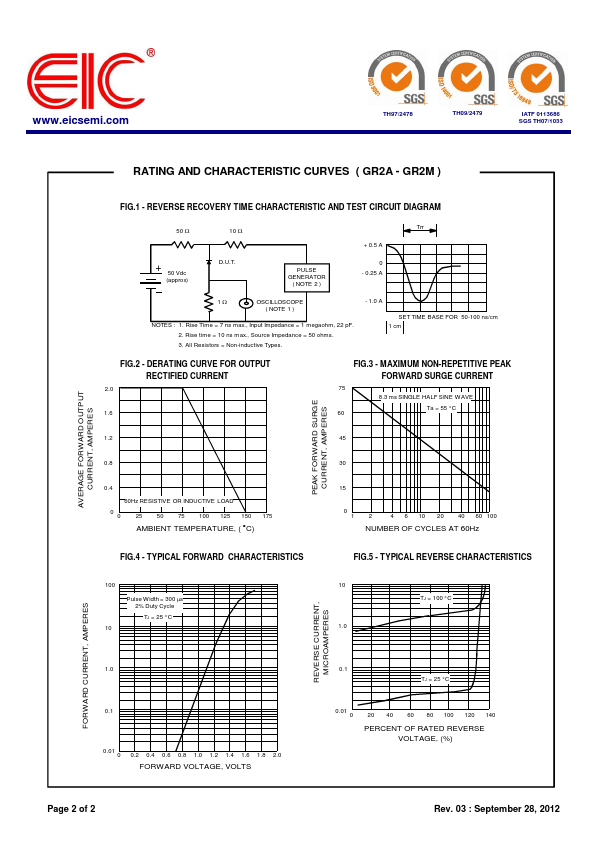

datasheet Preview Page 2

Datasheet Specifications

Part number
GR2G, GR2A
Manufacturer
EIC
File Size
56.88 KB
Datasheet
GR2A-EIC.pdf
Description
GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: GR2G, GR2A.
Please refer to the document for exact specifications by model.

Features

* :
* Glass passivated chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-0 rate flame retardant
