* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Metal Case
* Epoxy : UL94V-0 rate flame retardant
* Terminals : plated .25" (6.35 mm). Fasto
KBPC2500 Datasheet (111.43 KB)
KBPC2500
EIC
111.43 KB
Silicon bridge rectifier.
www.eicsemi.com
TH97/2478
TH09/2479
IATF 0113686 SGS TH07/1033

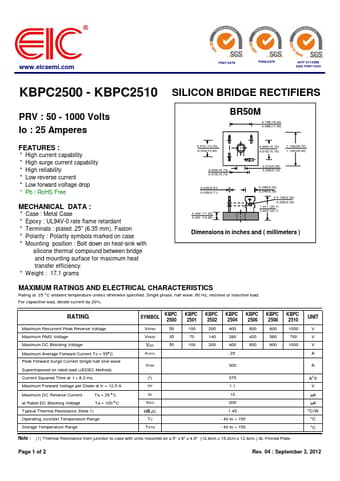

KBPC2500 - KBPC2510 SILICON BRIDGE RECTIFIERS
PRV : 50 - 1000 Volts Io : 25 Ampere.
