MAR4005, MAR4003 SURFACE MOUNT RECTIFIERS

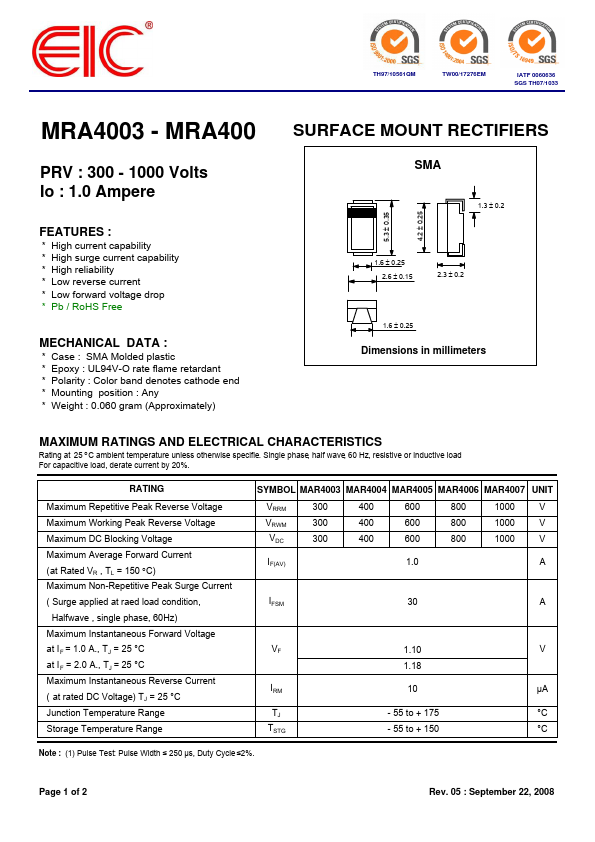

📥 Download Datasheet Datasheet Preview Page 1

Description

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 MRA4003 - MRA400 PRV : 300 - 1000 Volts Io : 1.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAR4005, MAR4003. Please refer to the document for exact specifications by model.

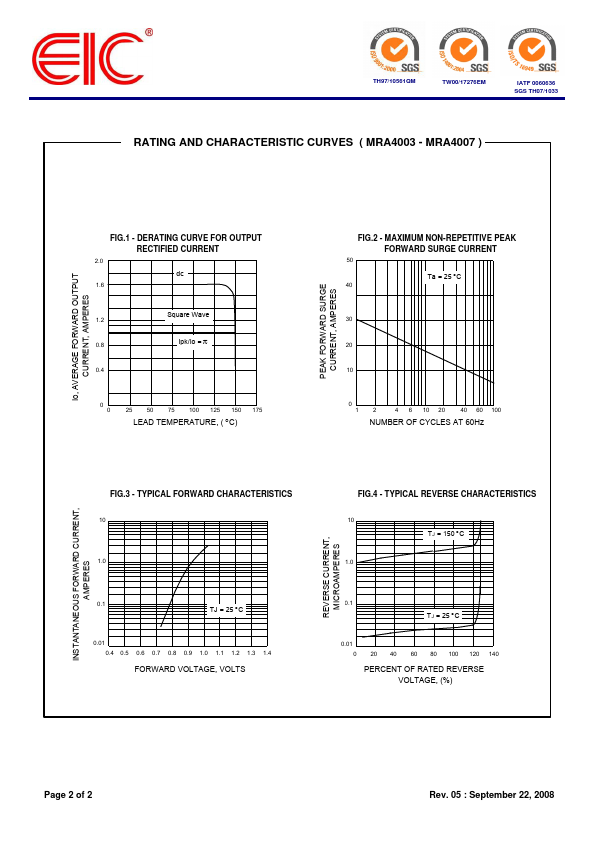

datasheet Preview Page 2

Datasheet Specifications

Part number
MAR4005, MAR4003
Manufacturer
EIC
File Size
90.89 KB
Datasheet
MAR4003-EIC.pdf
Description
SURFACE MOUNT RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MAR4005, MAR4003.
Please refer to the document for exact specifications by model.

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Polarity : Color band denotes ca
