MR3506S, MR3500S AUTOMOTIVE RECTIFIER DIODES

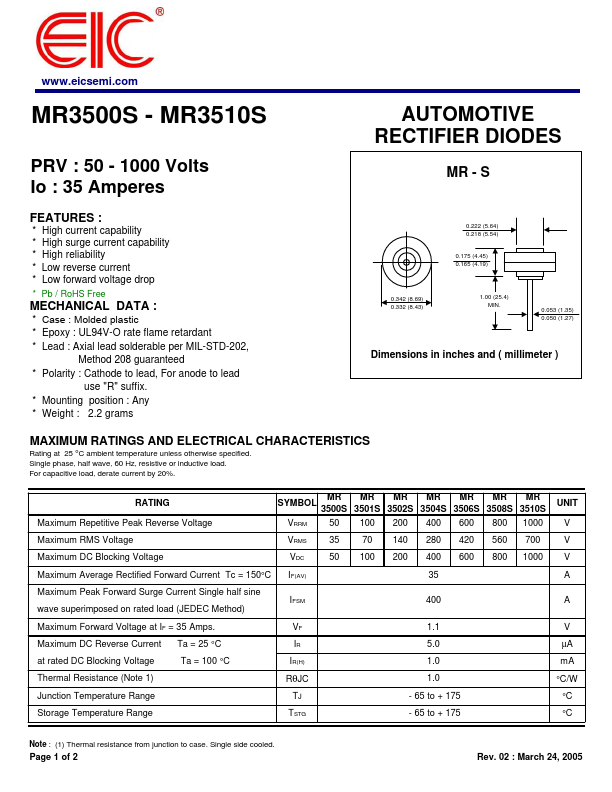

MR3506S Description

www.eicsemi.com MR3500S - MR3510S PRV : 50 - 1000 Volts Io : 35 Amperes AUTOMOTIVE RECTIFIER DIODES MR - S .

MR3506S Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MR3506S, MR3500S. Please refer to the document for exact specifications by model.

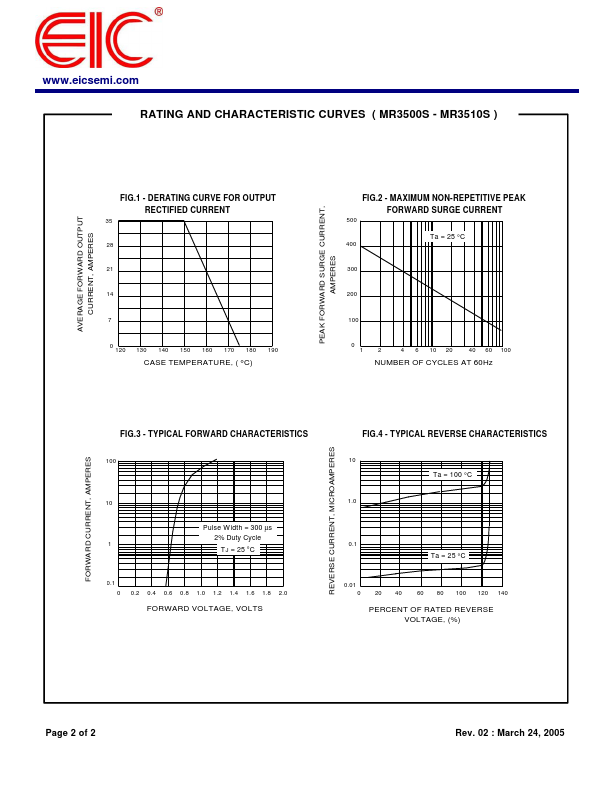

datasheet Preview Page 2

Datasheet Details

Part number
MR3506S, MR3500S
Manufacturer
EIC
File Size
67.92 KB
Datasheet
MR3500S-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: MR3506S, MR3500S.
Please refer to the document for exact specifications by model.
