P6KE150 - TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

EIC

📥 Download Datasheet

P6KE150 TRANSIENT VOLTAGE SUPPRESSOR by EIC - Datasheet Preview — Datasheet preview – P6KE150

Datasheet Details

Part number	P6KE150
Manufacturer	EIC
File Size	476.63 KB
Description	TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P6KE150 Datasheet
Note	This datasheet PDF includes multiple part numbers: P6KE150, P6KE6.8. Please refer to the document for exact specifications by model.

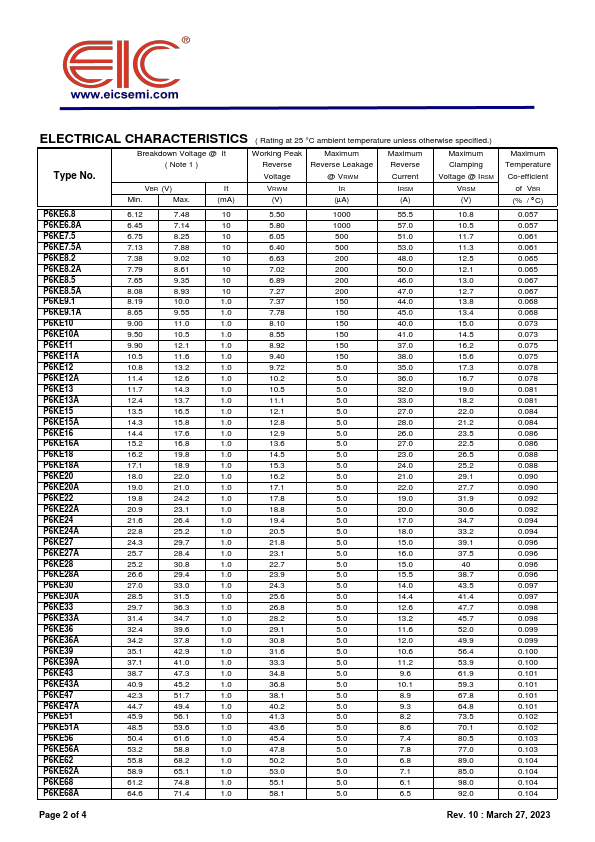

Additional preview pages of the P6KE150 datasheet.

Product details

Features

:.
Glass passivated jungtion chip.
600W surge capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. ).
Typical IR less then 1mA above 10V.
Moisture Sensitivity Level 1 (Unlimited).
Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 1.00 (25.4) MIN.
