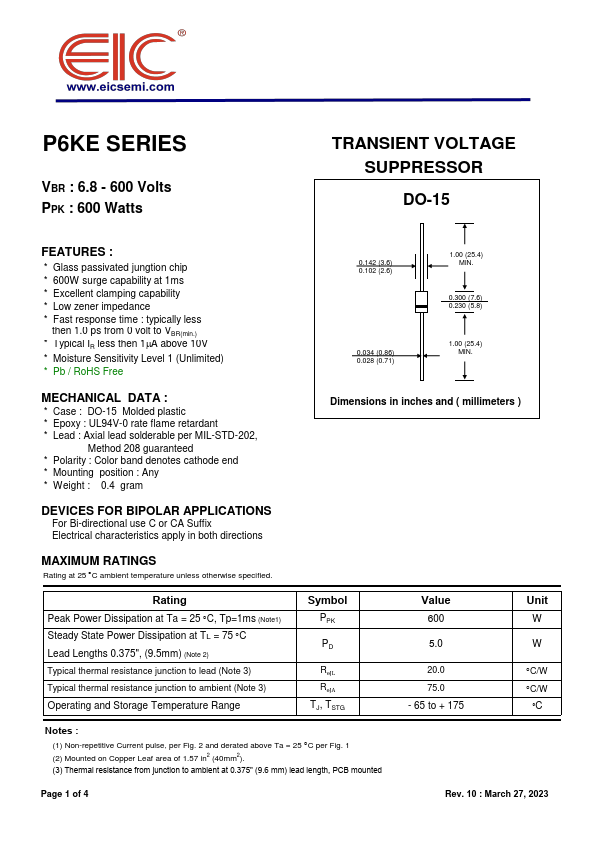

P6KE540, P6KE6.8 TRANSIENT VOLTAGE SUPPRESSOR

P6KE540 Description

P6KE SERIES VBR : 6.8 - 600 Volts PPK : 600 Watts TRANSIENT VOLTAGE SUPPRESSOR DO-15 .

P6KE540 Features

* :
* Glass passivated jungtion chip
* 600W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1mA above 10V
* Moisture Sensitivity Level 1 (Unlimite

P6KE540 Applications

* For Bi-directional use C or CA Suffix Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at TL = 75 °C Lead Lengths 0.375", (9

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P6KE540, P6KE6.8. Please refer to the document for exact specifications by model.

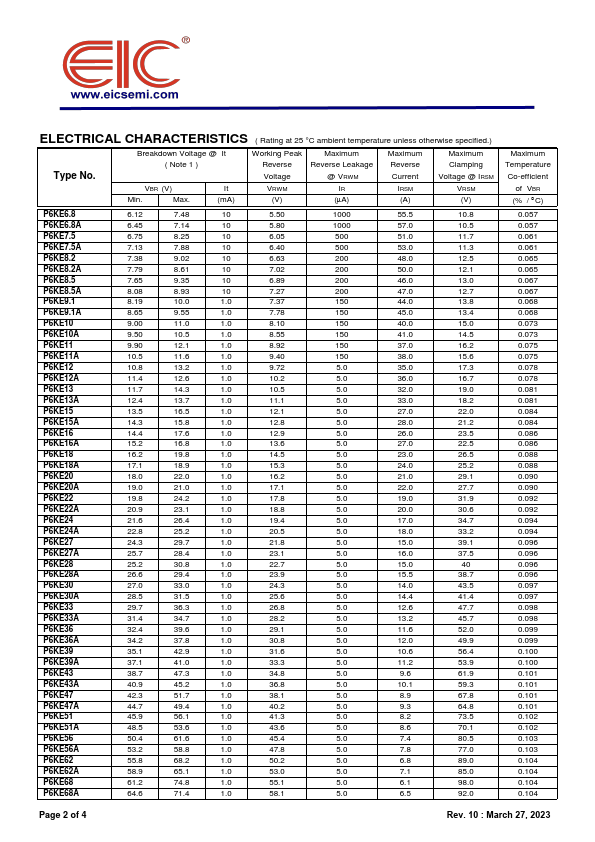

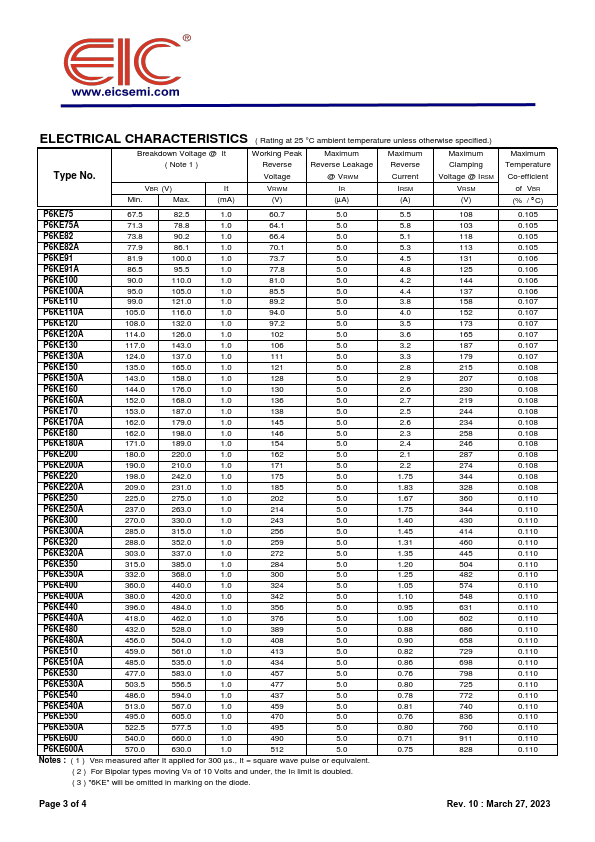

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P6KE540, P6KE6.8
Manufacturer
EIC
File Size
476.63 KB
Datasheet
P6KE6.8-EIC.pdf
Description
TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: P6KE540, P6KE6.8.
Please refer to the document for exact specifications by model.
