P6SMB33A, P6SMB6.8A Datasheet - EIC

P6SMB33A, P6SMB6.8A, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 P6SMB6.8A - P6SMB400A VBR : 6.8 - 440 Volts PPK : 600 Watts .

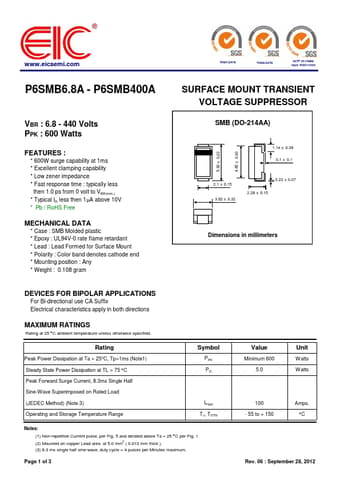

datasheet Preview Page 1 from Datasheet4u.com

P6SMB6.8A-EIC.pdf

P6SMB33A Datasheet Preview — This datasheet PDF includes multiple part numbers: P6SMB33A, P6SMB6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P6SMB33A, P6SMB6.8A

Manufacturer:

EIC

File Size:

63.92 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: P6SMB33A, P6SMB6.8A.
Please refer to the document for exact specifications by model.

Features

* :
* 600W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1μA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : SMB Molded plastic
* Epoxy

Applications

* For Bi-directional use CA Suffix Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25
