RBV1501D, RBV1500D SILICON BRIDGE RECTIFIERS

RBV1501D Description

www.eicsemi.com RBV1500D - RBV1510D SILICON BRIDGE RECTIFIERS PRV : 50 - 1000 Volts Io : 15 Amperes .

RBV1501D Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Rated isolation-voltage 2000 VAC
* Ideal for printed circuit board
* Very good heat dissipation
* Pb / RoHS Free RBV25 3.9 ± 0.2 C3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RBV1501D, RBV1500D. Please refer to the document for exact specifications by model.

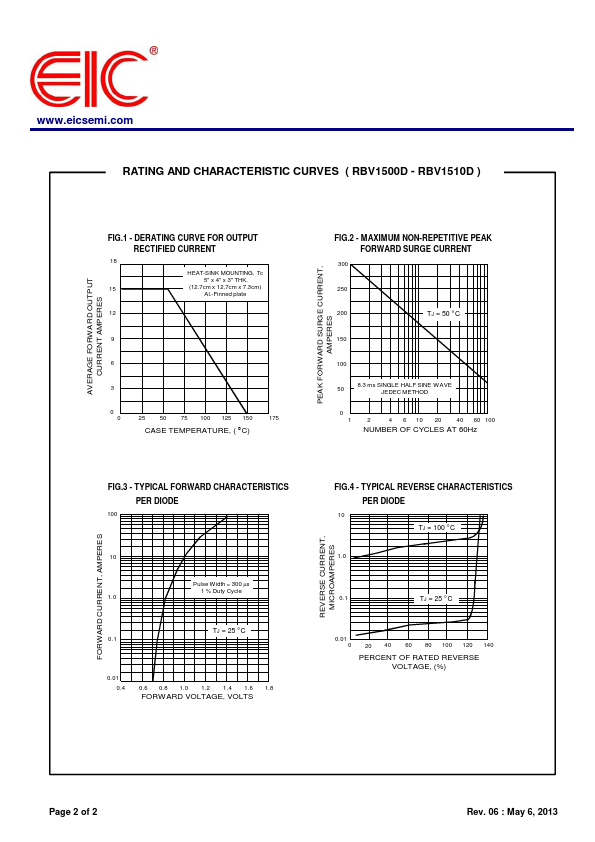

datasheet Preview Page 2

Datasheet Details

Part number
RBV1501D, RBV1500D
Manufacturer
EIC
File Size
86.97 KB
Datasheet
RBV1500D-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RBV1501D, RBV1500D.
Please refer to the document for exact specifications by model.
