RGF1J, RGF1A SURFACE MOUNT FAST RECOVERY RECTIFIERS

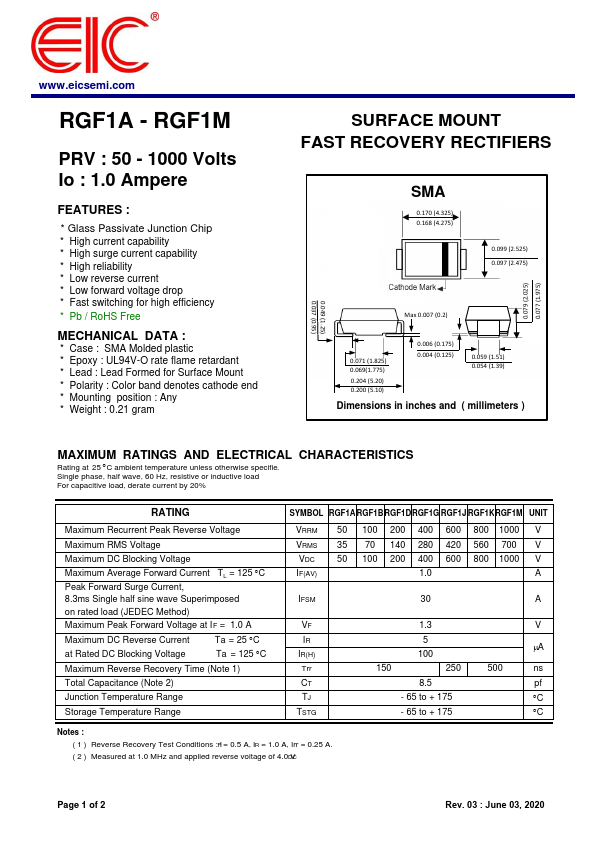

📥 Download Datasheet Datasheet Preview Page 1

Description

www.eicsemi.com RGF1A - RGF1M PRV : 50 - 1000 Volts Io : 1.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RGF1J, RGF1A. Please refer to the document for exact specifications by model.

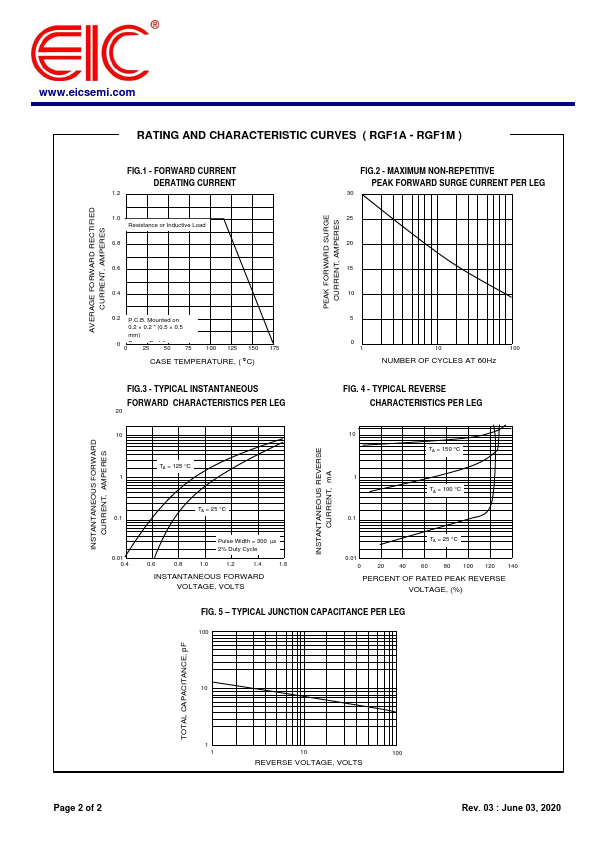

datasheet Preview Page 2

Datasheet Specifications

Part number
RGF1J, RGF1A
Manufacturer
EIC
File Size
123.49 KB
Datasheet
RGF1A-EIC.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RGF1J, RGF1A.
Please refer to the document for exact specifications by model.

Features

* :
* Glass Passivate Junction Chip
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
