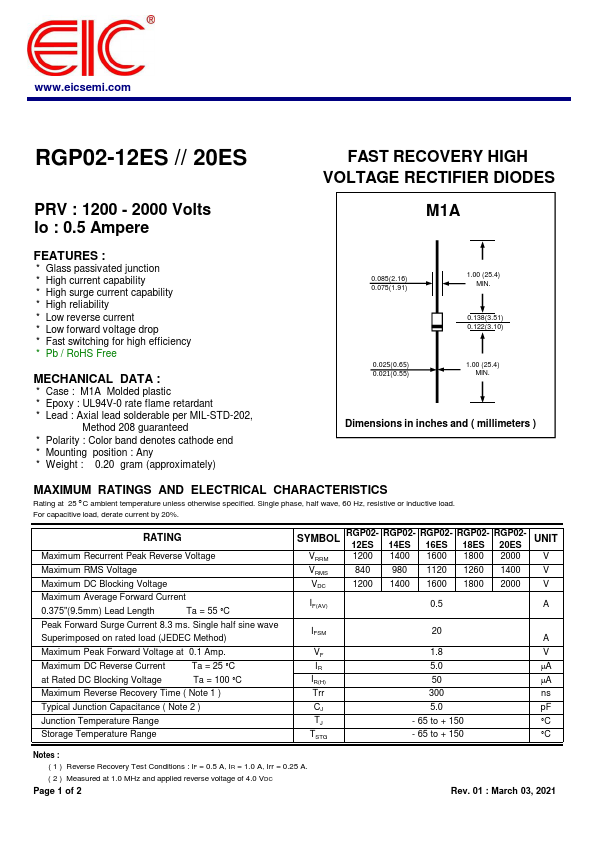

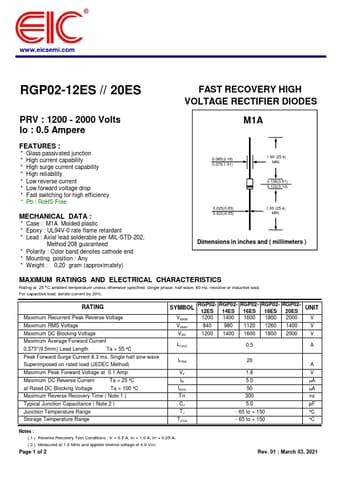

RGP02-14ES
FEATURES
:
- Glass passivated junction
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Fast switching for high efficiency
- Pb / Ro HS Free
MECHANICAL DATA :
- Case : M1A Molded plastic
- Epoxy : UL94V-0 rate flame retardant
- Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.20 gram (approximately)
0.085(2.16) 0.075(1.91)
0.025(0.65) 0.021(0.55)
1.00 (25.4) MIN.
0.138(3.51) 0.122(3.10)
1.00 (25.4) MIN.
Dimensions in inches and ( millimeters )

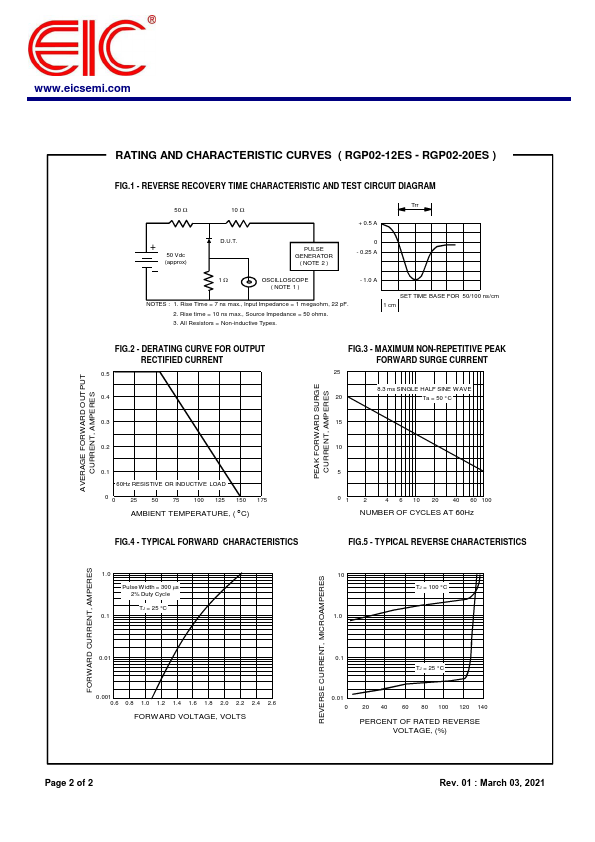

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead...
