RGP15B, RGP15A FAST RECOVERY RECTIFIER

RGP15B Description

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 RGP15A - RGP15M FAST RECOVERY RECTIFIER PRV : 50 - 1000 Volts Io : 1.5 Amperes .

RGP15B Features

* :
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-15 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202, Method 20

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RGP15B, RGP15A. Please refer to the document for exact specifications by model.

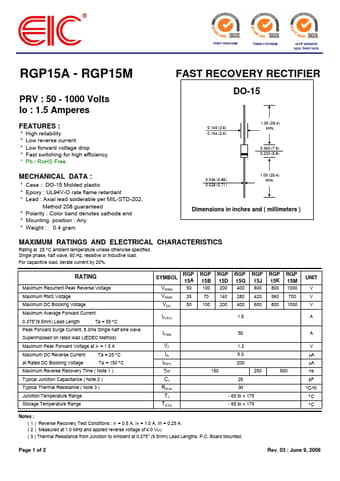

datasheet Preview Page 2

Datasheet Details

Part number
RGP15B, RGP15A
Manufacturer
EIC
File Size
105.37 KB
Datasheet
RGP15A-EIC.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RGP15B, RGP15A.
Please refer to the document for exact specifications by model.
