S1DS SURFACE MOUNT RECTIFIERS

S1DS Description

www.eicsemi.com S1AS ~ S1MS SURFACE MOUNT RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere .

S1DS Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Polarity : Color band denotes ca

📥 Download Datasheet

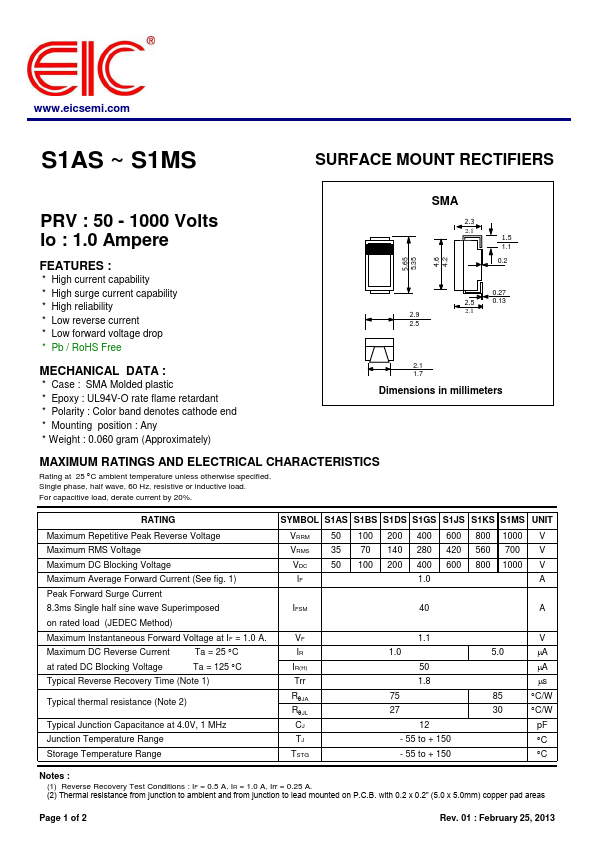

Preview of S1DS PDF

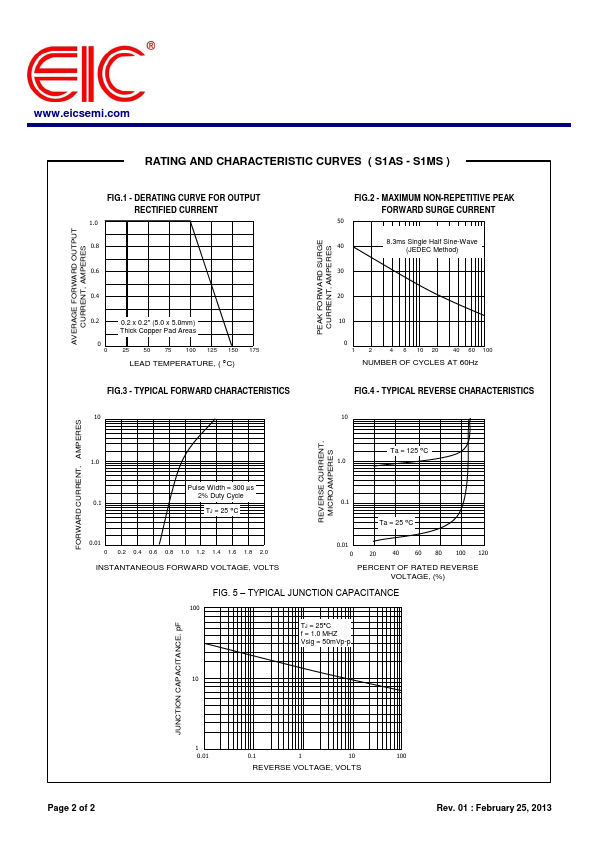

datasheet Preview Page 2

Datasheet Details

Part number
S1DS
Manufacturer
EIC
File Size
290.49 KB
Datasheet
S1DS-EIC.pdf
Description
SURFACE MOUNT RECTIFIERS
