S1MS SURFACE MOUNT RECTIFIERS

EIC

S1MS Description

www.eicsemi.com S1AS ~ S1MS SURFACE MOUNT RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere .

S1MS Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Polarity : Color band denotes ca

📥 Download Datasheet

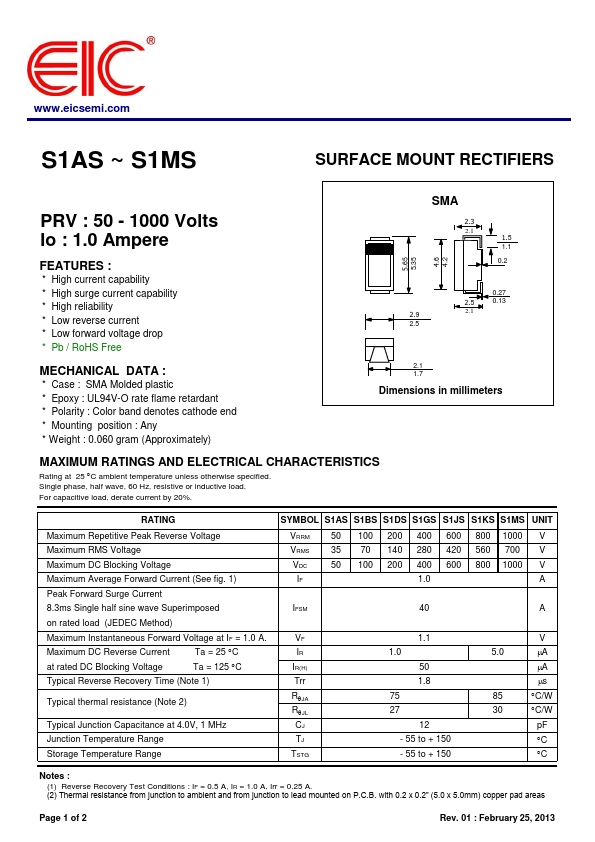

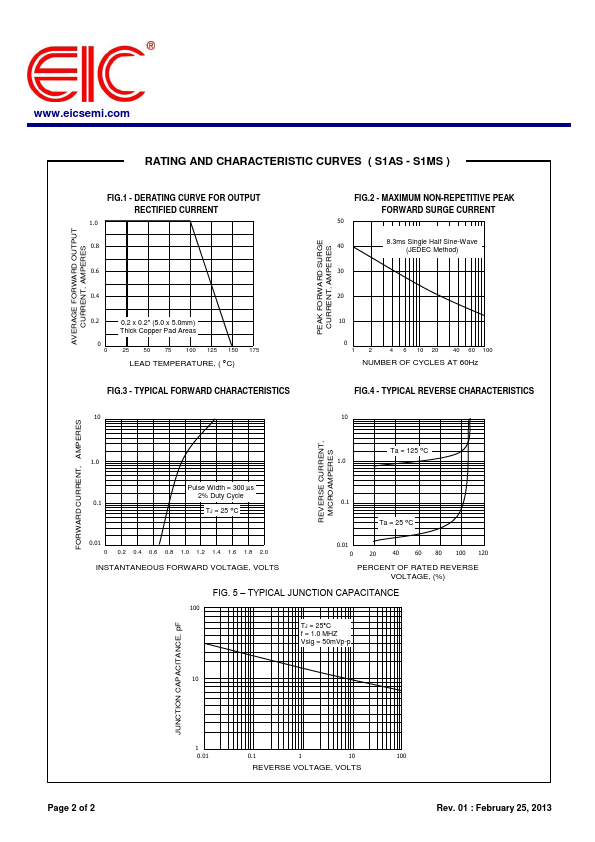

S1MS Datasheet Preview — Preview of S1MS PDF

Datasheet Details

Part number: S1MS
Manufacturer: EIC
File Size: 290.50 KB
Datasheet: S1MS-EIC.pdf
Description: SURFACE MOUNT RECTIFIERS
