S25VB20 SILICON BRIDGE RECTIFIERS

S25VB20 Description

www.eicsemi.com S25VB20 ~ S25VB60 PRV : 200 ~ 600 Volts Io : 25 Amperes SILICON BRIDGE RECTIFIERS BR50 0.728(18.50) 0.688(17.40) .

S25VB20 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally mounted in the bridge

📥 Download Datasheet

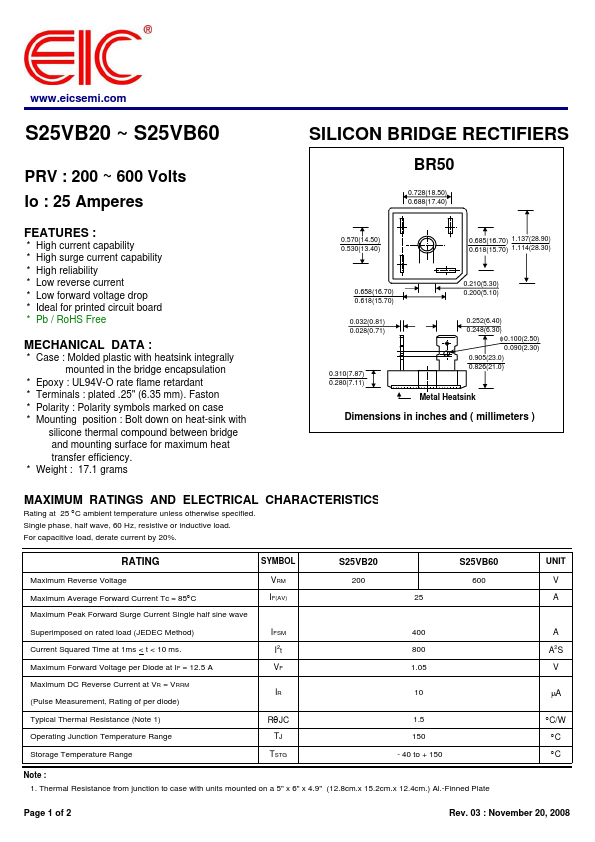

Preview of S25VB20 PDF

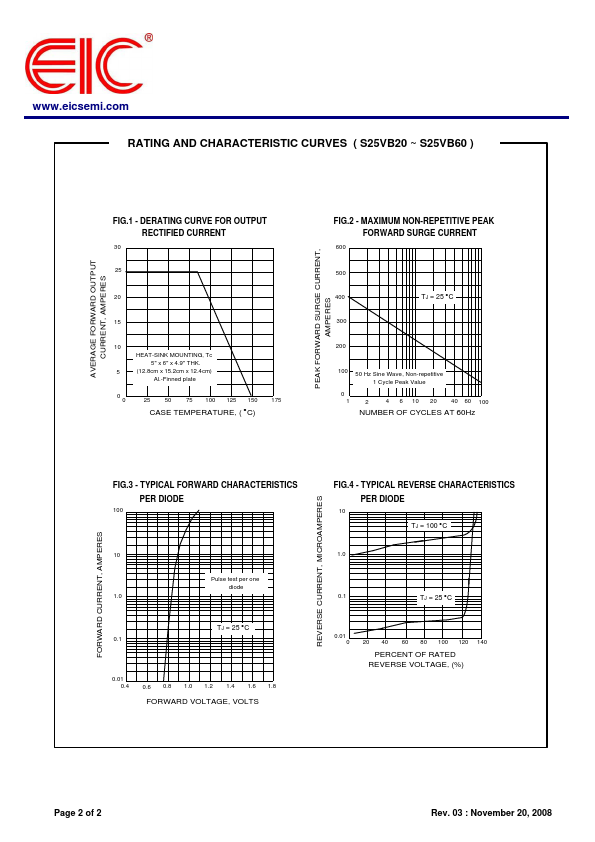

datasheet Preview Page 2

Datasheet Details

Part number
S25VB20
Manufacturer
EIC
File Size
35.05 KB
Datasheet
S25VB20-EIC.pdf
Description
SILICON BRIDGE RECTIFIERS
