SA26C, SA20C BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

SA26C Description

SA5.0C - SA170CA VBR : 6.8 - 200 Volts PPK : 500 Watts BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR DO - 41 .

SA26C Features

* :
* 500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epox

SA26C Applications

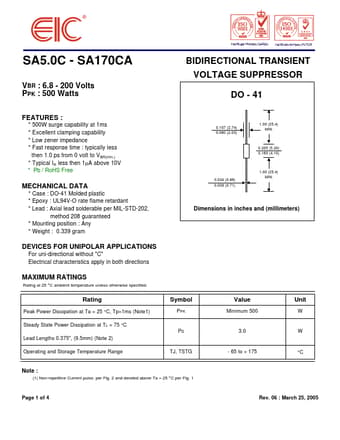

* For uni-directional without "C" Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at TL = 75 °C Lead Lengths 0.375", (9.5mm) (N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA26C, SA20C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA26C, SA20C
Manufacturer
EIC
File Size
64.54 KB
Datasheet
SA20C-EIC.pdf
Description
BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: SA26C, SA20C.
Please refer to the document for exact specifications by model.
