SBL3040PT Datasheet, Rectifiers, EIC

SBL3040PT Features

  • Rectifiers :
  • Low power loss, high efficiency
  • High current capability, low forward voltage drop
  • High surge capability
  • Guardring for overvoltage protection

PDF File Details

Part number:

SBL3040PT

Manufacturer:

EIC

File Size:

87.02kb

Download:

📄 Datasheet

Description:

Dual schottky barrier rectifiers.

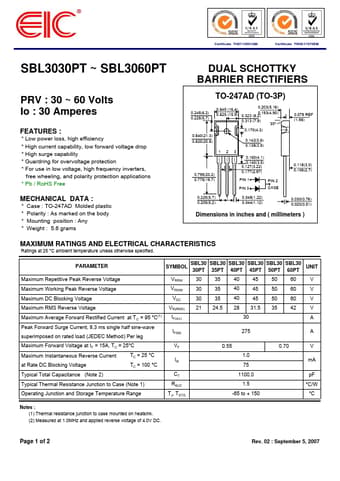

Datasheet Preview: SBL3040PT 📥 Download PDF (87.02kb)
Page 2 of SBL3040PT

SBL3040PT Application

  • Applications
  • Pb / RoHS Free MECHANICAL DATA :
  • Case : TO-247AD Molded plastic
  • Polarity : As marked on the body

TAGS

SBL3040PT
DUAL
SCHOTTKY
BARRIER
RECTIFIERS
EIC
