SETK - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS

This page provides the datasheet information for the SETK, a member of the SETA SURFACE MOUNT HIGH EFFICIENT RECTIFIERS family.

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Fast switching for high efficiency.
  • Pb Free / RoHS Compliant.

📥 Download Datasheet

Datasheet preview – SETK

Datasheet Details

Part number SETK
Manufacturer EIC
File Size 181.25 KB
Description SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
Datasheet download datasheet SETK Datasheet

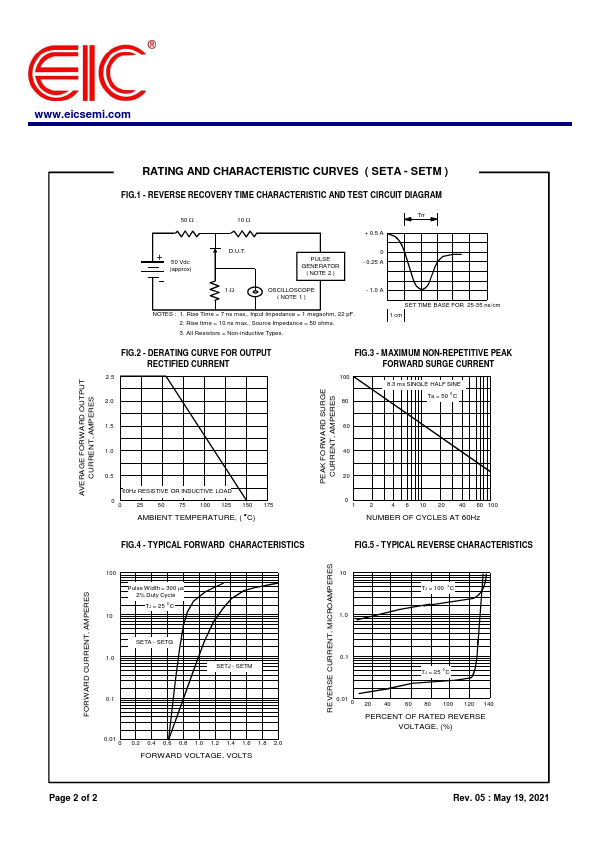

Additional preview pages of the SETK datasheet.

📁 Similar Datasheet

  • SET-0901 - SMD MODEM TRANSFORMER (Micro Electronics)
  • SET-0902 - SMD MODEM TRANSFORMER (Micro Electronics)
  • SET010203 - (SET0102xx) MINISTUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET010204 - (SET0102xx) MINISTUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET010211 - (SET0102xx) MINISTUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET010212 - (SET0102xx) MINISTUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET010219 - (SET0102xx) MINISTUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET030603 - (SET03xxxx) DO4 STUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET03xx03 - (SET03xxxx) DO4 STUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
  • SET03xx04 - (SET03xxxx) DO4 STUD HIGH CURRENT ISOLATED RECTIFIER ASSEMBLY (Semtech Corporation)
Other Datasheets by EIC
  • SETA - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETB - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETD - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETE - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETG - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETJ - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS
  • SETM - SURFACE MOUNT HIGH EFFICIENT RECTIFIERS

Full PDF Text Transcription

Click to expand full text

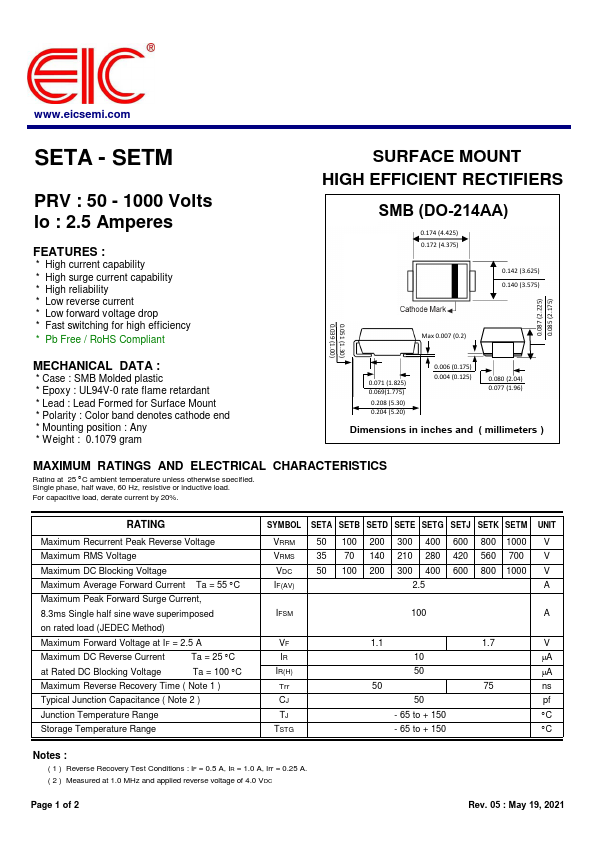

www.eicsemi.com SETA - SETM PRV : 50 - 1000 Volts Io : 2.5 Amperes FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Fast switching for high efficiency * Pb Free / RoHS Compliant SURFACE MOUNT HIGH EFFICIENT RECTIFIERS SMB (DO-214AA) 0.174 (4.425) 0.172 (4.375) 0.142 (3.625) 0.140 (3.575) Max 0.007 (0.2) 0.087 (2.225) 0.085 (2.175) 0.051 (1.30) 0.039 (1.00) MECHANICAL DATA : * Case : SMB Molded plastic * Epoxy : UL94V-0 rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.1079 gram 0.071 (1.825) 0.069(1.775) 0.208 (5.30) 0.204 (5.20) 0.006 (0.175) 0.004 (0.125) 0.080 (2.04) 0.077 (1.
