SMF20A, SMF5.0A - ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR

Name: SMF20A
SKU: SMF20A-1180069

EIC

The SMF20A by EIC is a ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	SMF20A, SMF5.0A
Manufacturer	EIC
File Size	130.54 KB
Description	ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR
Datasheet	SMF5.0A-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: SMF20A, SMF5.0A. Please refer to the document for exact specifications by model.

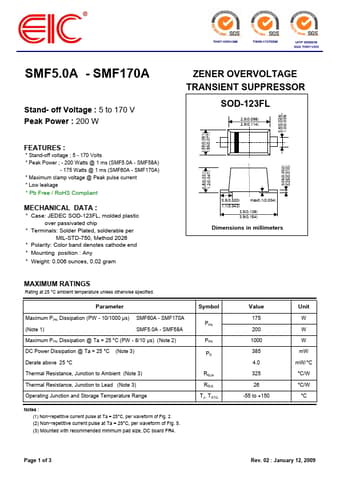

Additional preview pages of the SMF20A datasheet.

:.
Stand-off voltage ; 5 - 170 Volts.
Peak Power ; - 200 Watts @ 1 ms (SMF5.0A - SMF58A) - 175 Watts @ 1 ms (SMF60A - SMF170A).
Maximum clamp voltage @ Peak pulse current.
Low leakage.
Pb Free / RoHS Compliant.
