* Stand-off voltage ; 5 - 170 Volts
* Peak Power ; - 200 Watts @ 1 ms (SMF5.0A - SMF58A) - 175 Watts @ 1 ms (SMF60A - SMF170A)
* Maximum clamp voltage @ Peak pulse current
* Low leakage
* Pb Free / RoHS Compliant MECHANICAL DATA :
* Case: JEDEC SOD-123FL, molded plastic ove
SMF85A
EIC
130.54 KB
Zener overvoltage transient suppressor.

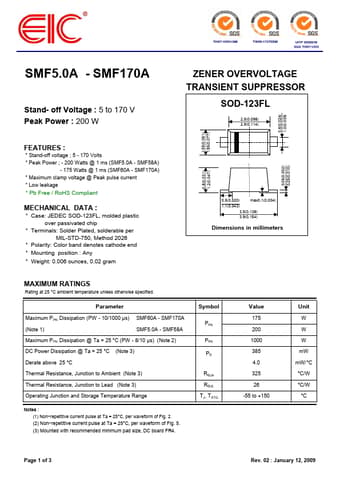

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 SMF5.0A - SMF170A Stand- off Voltage : 5 to 170 V Peak Power : 200 W ZENER OVERVOLTAGE TRANSI.
