SN26 SURFACE MOUNT RECTIFIERS

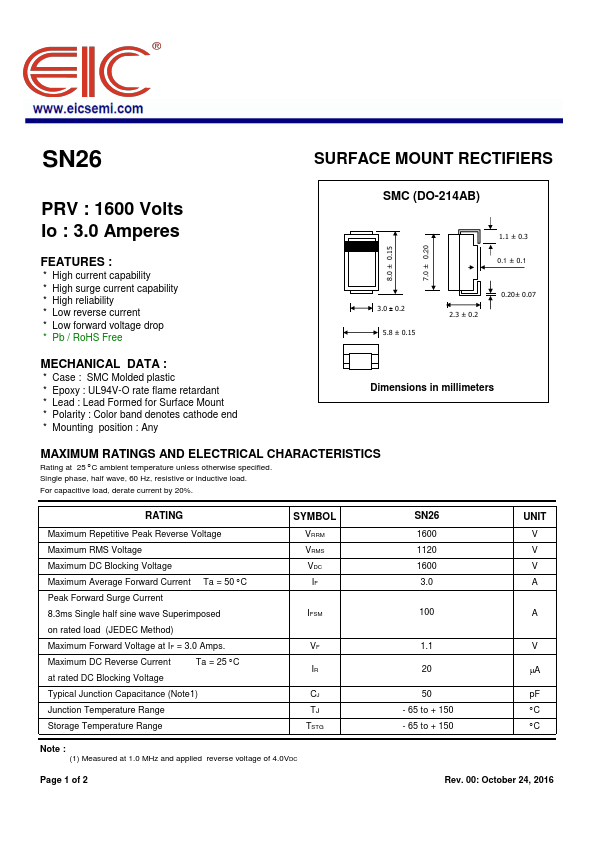

📥 Download Datasheet  Datasheet Preview Page 1

Description

SN26 SURFACE MOUNT RECTIFIERS PRV : 1600 Volts Io : 3.0 Amperes SMC (DO-214AB) 1.1 ± 0.3 8.0 ± 0.15 7.0 ± 0.20 .

📥 Download Datasheet

Preview of SN26 PDF

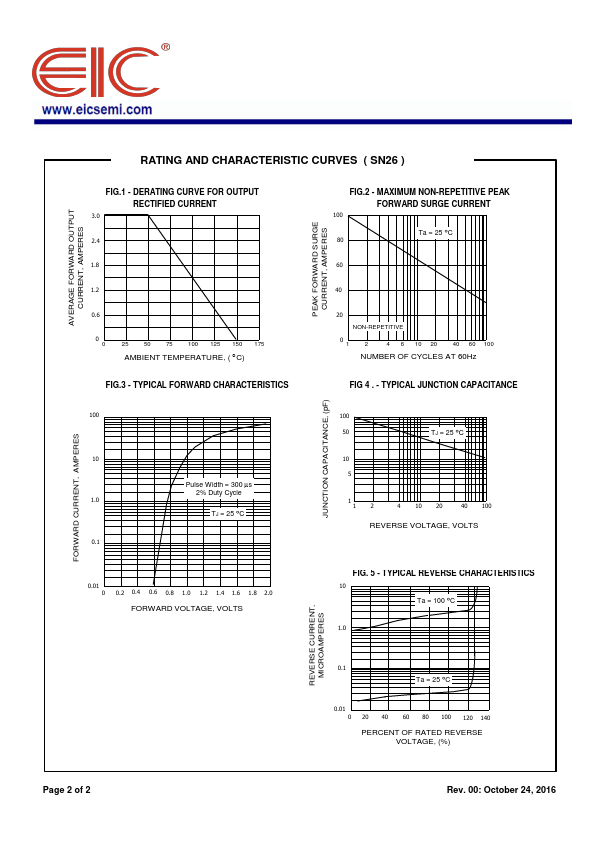

datasheet Preview Page 2

Datasheet Specifications

Part number
SN26
Manufacturer
EIC
File Size
416.09 KB
Datasheet
SN26-EIC.pdf
Description
SURFACE MOUNT RECTIFIERS

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 3.0 ± 0.2 5.8 ± 0.15 0.1 ± 0.1 2.3 ± 0.2 0.20± 0.07 MECHANICAL DATA :
* Case : SMC Molded plastic
* Epoxy : UL94V-O ra
