STBK0D5, STBK06I SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

STBK0D5 Description

STBK06I - STBK5G4 VBR : 6.8 - 440 Volts PPK : 1500 Watts SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR SMC (DO-214AB) .

STBK0D5 Features

* :
* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free MECHANICAL DATA
* Case : SMC Molded plastic
* Epoxy

STBK0D5 Applications

* For Uni-directional altered the third letter of type from "B" to be "U". Electrical characteristics apply in both directions MAXIMUM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STBK0D5, STBK06I. Please refer to the document for exact specifications by model.

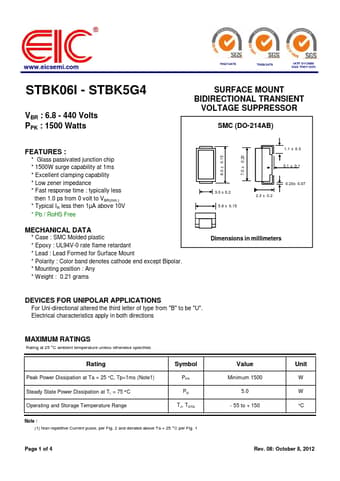

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STBK0D5, STBK06I
Manufacturer
EIC
File Size
83.62 KB
Datasheet
STBK06I-EIC.pdf
Description
SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: STBK0D5, STBK06I.
Please refer to the document for exact specifications by model.
