STUP0G4, STUP547 (STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

STUP0G4 Description

www.DataSheet4U.com STUP06I - STUP5G4 VBR : 6.8 - 440 Volts PPK : 400 Watts .

STUP0G4 Features

* :
* 400W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMA (DO-214AC) 5.0 ± 0.15 4.5 ± 0.1

STUP0G4 Applications

* For bi-directional altered the third letter of type from "U" to be "B". Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STUP0G4, STUP547. Please refer to the document for exact specifications by model.

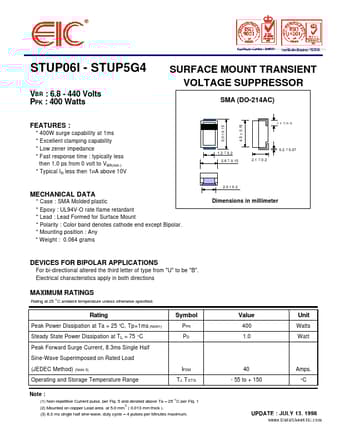

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STUP0G4, STUP547
Manufacturer
EIC
File Size
56.13 KB
Datasheet
STUP547_EIC.pdf
Description
(STUP06I - STUP5G4) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: STUP0G4, STUP547.
Please refer to the document for exact specifications by model.
