TGL41-8.2A, TGL41-6.8 Datasheet - EIC

TGL41-8.2A, TGL41-6.8, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

TH97/2478 TH09/2479 IATF 0060636 SGS TH07/1033 TGL41- 6.8 ~ TGL41-200CA VBR : 6.8 to 200 V PPPM : 400 W .

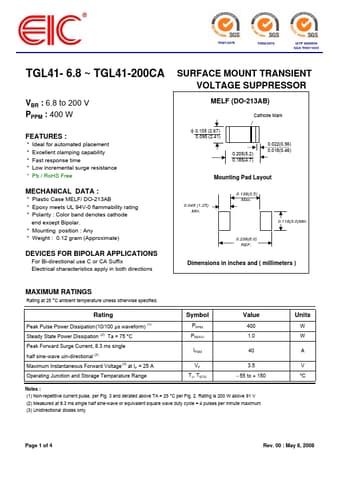

TGL41-6.8-EIC.pdf

TGL41-8.2A Datasheet Preview — This datasheet PDF includes multiple part numbers: TGL41-8.2A, TGL41-6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TGL41-8.2A, TGL41-6.8

Manufacturer:

EIC

File Size:

111.19 KB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: TGL41-8.2A, TGL41-6.8.
Please refer to the document for exact specifications by model.

Features

* :
* Ideal for automated placement
* Excellent clamping capability
* Fast response time
* Low incremental surge resistance
* Pb / RoHS Free MECHANICAL DATA :
* Plastic Case MELF/ DO-213AB
* Epoxy meets UL 94V-0 flammability rating
* Polarity : Color band denotes cathod

Applications

* For Bi-directional use C or CA Suffix Electrical characteristics apply in both directions SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR MELF (DO-213AB) Cathode Mark φ 0.105 (2.67) 0.095 (2.41) 0.205(5.2) 0.185(4.7) 0.022(0.56) 0.018(0.46) Mounting Pad Layout 0.049 (1.25) Min. 0.138(3.5) Max. 0.
