TZMC47, TZMC2V4 ZENER DIODES

TZMC47 Description

TZMC Series VZ : 2.4 to 75V PD : 500mW .

TZMC47 Features

* :
* Silicon planar zener diodes
* Very sharp reverse characteristic
* Low reverse current lavel
* Available with tighter tolerance
* Very high stadility
* Low noise
* Pb / RoHS Free MECHANICAL DATA :
* Case : MiniMELF Glass Case (SOD-80C)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TZMC47, TZMC2V4. Please refer to the document for exact specifications by model.

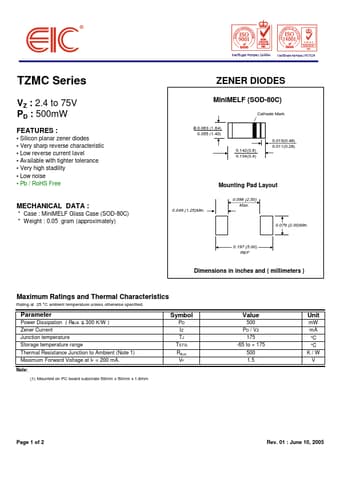

datasheet Preview Page 2

Datasheet Details

Part number
TZMC47, TZMC2V4
Manufacturer
EIC
File Size
39.81 KB
Datasheet
TZMC2V4-EIC.pdf
Description
ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: TZMC47, TZMC2V4.
Please refer to the document for exact specifications by model.
