UF4001 ULTRA FAST EFFICIENT RECTIFIER DIODES

UF4001 Description

www.eicsemi.com UF4001 ~ UF4007 PRV : 50 ~ 1000 Volts Io : 1.0 Ampere ULTRA FAST EFFICIENT RECTIFIER DIODES DO - 41 .

UF4001 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retar

📥 Download Datasheet

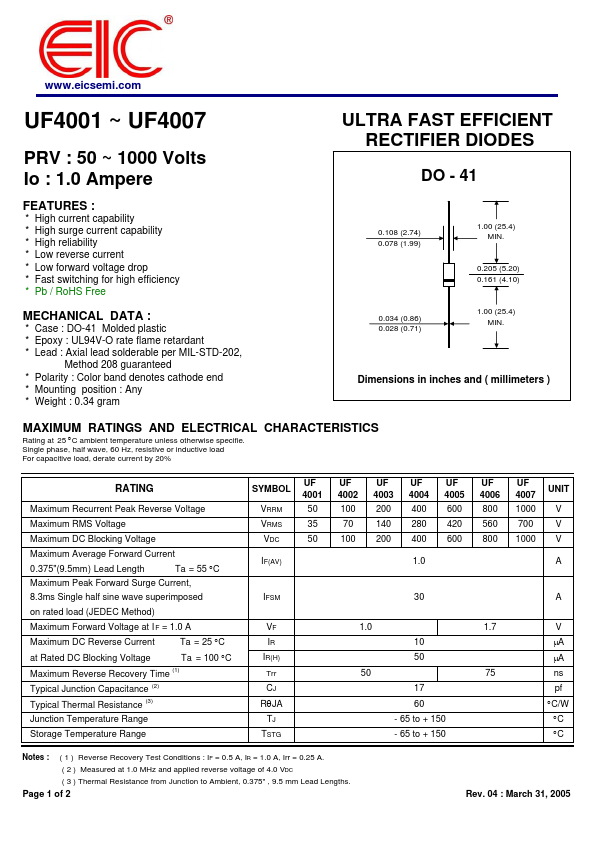

Preview of UF4001 PDF

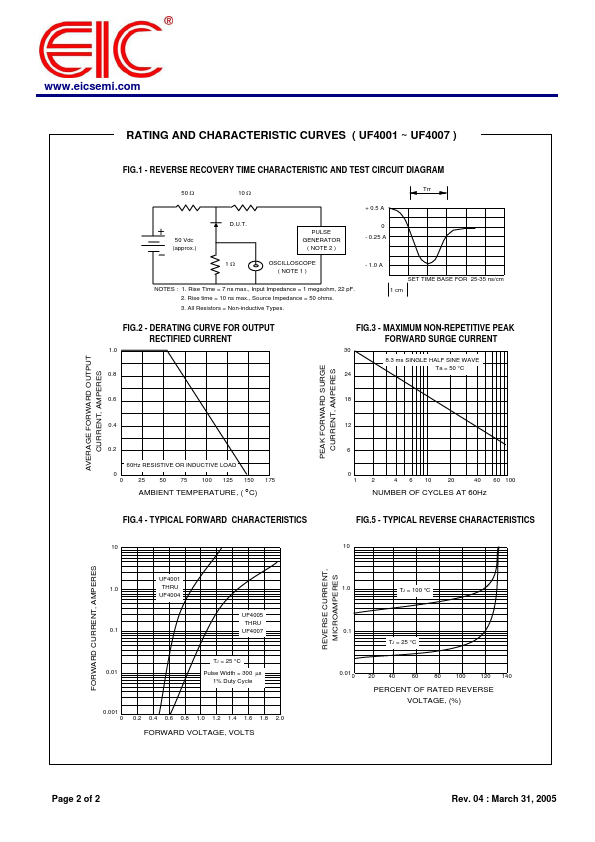

datasheet Preview Page 2

Datasheet Details

Part number
UF4001
Manufacturer
EIC
File Size
46.31 KB
Datasheet
UF4001-EIC.pdf
Description
ULTRA FAST EFFICIENT RECTIFIER DIODES
