EM91215A - TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

ELAN Microelectronics Corp

📥 Download Datasheet

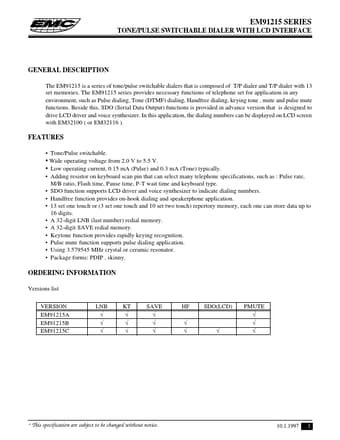

EM91215A Datasheet Preview — Preview of EM91215A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: EM91215A
Manufacturer: ELAN Microelectronics Corp
File Size: 145.52 KB
Datasheet: EM91215A_ELANMicroelectronicsCorp.pdf
Description: TONE/PULSE SWITCHABLE DIALER WITH LCD INTERFACE

EM91215A Product details

Description

The EM91215 is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 13 set memories..

Features

Tone/Pulse switchable.
Wide operating voltage from 2.0 V to 5.5 V.
Low operating current, 0.15 mA (Pulse) and 0.3 mA (Tone) typically.
Adding resistor on keyboard scan pin that can select many telephone specifications, such as : Pulse rate, M/B ratio, Flash time, Pause time, P-T wait time and keyboard type.
SDO function supports LCD driver and voice synthesizer to indicate dialing numbers.
Handfree function provides on-hook dialing and.
