EM91865B, 13 MEMORY TONE/PULSE DIALER WITH HF/ HD/ REDIAL AND VOLUME CONTROL FUNCTION

EM91865 13 MEMORY TONE/PULSE DIALER WITH HF, HD, REDIAL AND VOLUME CONTROL FUNCTION inary Prelim GENERAL.
The EM91865 are 13 memory tone/pulse switchable dialer with Last Number Redail (LNB) anD SAVE function, Which are fabricate in CMOS technology with wi.

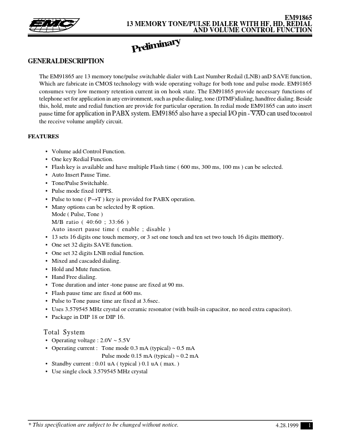

datasheet Preview Page 1 from Datasheet4u.com

EM91865B_ELANMicroelectronicsCorp.pdf

EM91865B Datasheet Preview — Preview of EM91865B PDF

Datasheet Details

Part number:

EM91865B

Manufacturer:

ELAN Microelectronics Corp

File Size:

134.46 KB

Description:

13 MEMORY TONE/PULSE DIALER WITH HF/ HD/ REDIAL AND VOLUME CONTROL FUNCTION

Features

* Volume add Control Function. One key Redial Function. Flash key is available and have multiple Flash time ( 600 ms, 300 ms, 100 ms ) can be selected. Auto Insert Pause Time. Tone/Pulse Switchable. Pulse mode fixed 10PPS.

Applications

* Storing : EM91865 support two operating methods to store numbers into SAVE redial memory. Method 1 :
* To select Pulse or Tone mode.
* Off-hook(or turn on HF function), push d1, d2 , dn. The numbers d1, d2,, dn will be dialed out in Pulse or Tone mode as selection.
* After d
