ELM842B - CMOS Operational amplifier

ELM Technology Corporation

The ELM842B by ELM Technology Corporation is a CMOS Operational amplifier. Below is the official datasheet preview.

📥 Download Datasheet

ELM842B CMOS Operational amplifier by ELM Technology Corporation - Datasheet Preview — Official preview page of the **ELM842B** CMOS Operational amplifier datasheet (ELM Technology Corporation).

Datasheet Details

Part number	ELM842B
Manufacturer	ELM Technology Corporation
File Size	94.56 KB
Description	CMOS Operational amplifier
Datasheet	ELM842B_ELMTechnologyCorporation.pdf

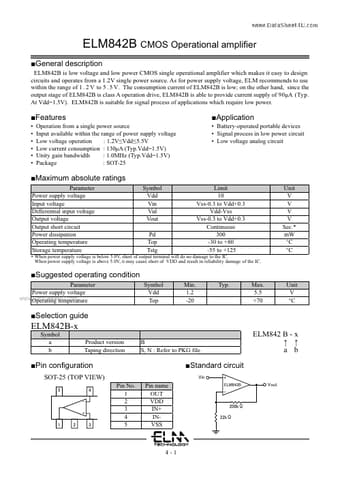

Additional preview pages of the ELM842B datasheet.

ELM842B Product details

Description

ELM842B is low voltage and low power CMOS single operational amplifier which makes it easy to design circuits and operates from a 1.2V single power source.

Features

Operation from a single power source Input available within the range of power supply voltage Low voltage operation : 1.2V≤Vdd≤5.5V Low current consumption : 130μA (Typ. Vdd=1.5V) Unity gain bandwidth : 1.0MHz (Typ. Vdd=1.5V) Package : SOT-25.
