EM6580

Ultra Low Power 8-pin Flash Microcontroller

EM6580 Features

* ‰ True Low Power: ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ ‰ 5.8 µA active mode 3.3 µA standby mode 0.32 µA sleep mode Large Supply Voltage 2.0 V to 5.5 V No external component needed Available in SO-8/14 packages and die 4-bit ADC or 12 levels Supply Voltage Level Detector (SVLD) Unique ID code

EM6580 General Description

The EM6580 is a low power Flash 4-bit microcontroller coming in a small 8-pin SO package and working up to 0.4 MIPS. It comes with an integrated 4-bit ADC and 2 high current drive outputs of 10mA and it requires no external component. It has a sleep counter reset allowing automatic wake-up from slee.

EM6580 Datasheet (1.70 MB)

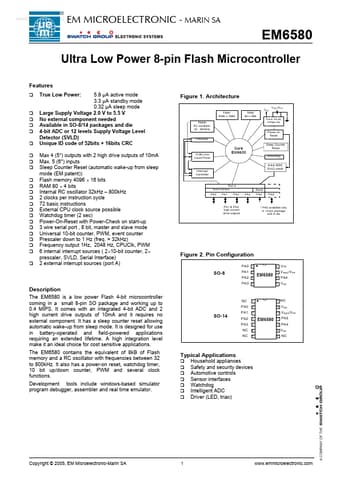

Preview of EM6580 PDF

Datasheet Details

Part number:

EM6580

Manufacturer:

EM Microelectronic

File Size:

1.70 MB

Description:

Ultra low power 8-pin flash microcontroller.
