RV-8803-C7 Real Time Clock Module

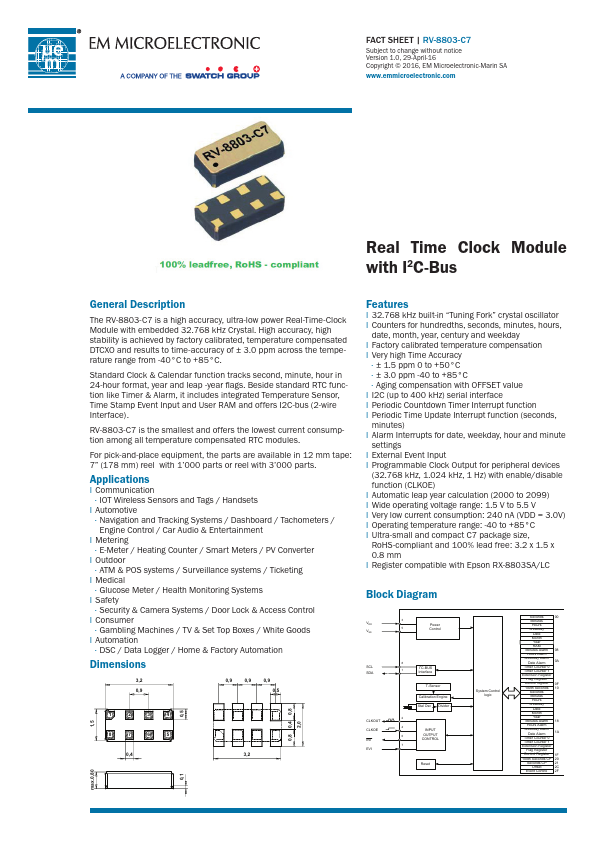

📥 Download Datasheet  Datasheet Preview Page 1

Description

FACT SHEET | RV-8803-C7 Subject to change without notice Version 1.0, 29-April-16 Copyright © 2016, EM Microelectronic-Marin SA www.emmicroelectronic..
The RV-8803-C7 is a high accuracy, ultra-low power Real-Time-Clock Module with embedded 32.

📥 Download Datasheet

Preview of RV-8803-C7 PDF

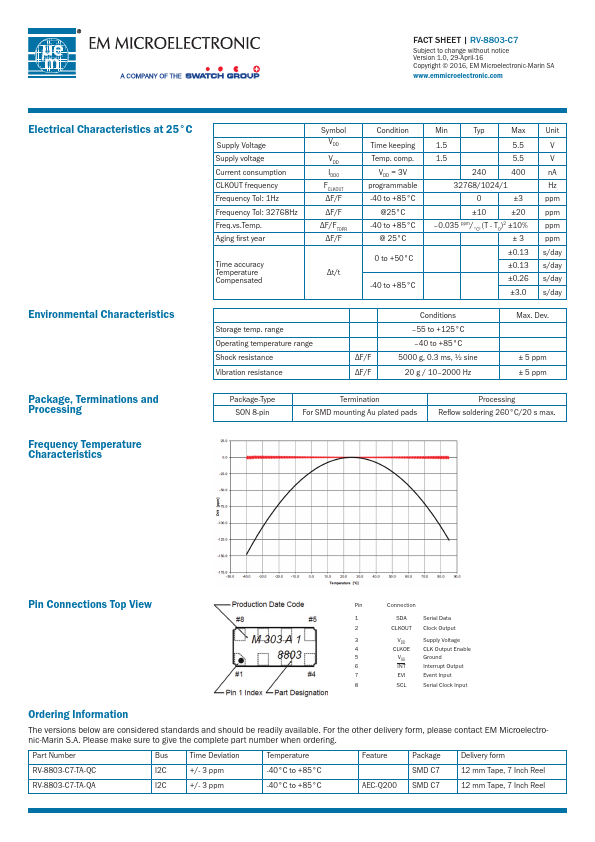

datasheet Preview Page 2

Datasheet Specifications

Part number
RV-8803-C7
Manufacturer
EM Microelectronic
File Size
438.27 KB
Datasheet
RV-8803-C7-EMMicroelectronic.pdf
Description
Real Time Clock Module

Features

* I 32.768 kHz built-in “Tuning Fork” crystal oscillator I Counters for hundredths, seconds, minutes, hours, date, month, year, century and weekday I Factory calibrated temperature compensation I Very high Time Accuracy
* ± 1.5 ppm 0 to +50°C
* ± 3.0 ppm -40 to +85°C
* Aging compensation w

Applications

* I Communication
* IOT Wireless Sensors and Tags / Handsets I Automotive
* Navigation and Tracking Systems / Dashboard / Tachometers / Engine Control / Car Audio & Entertainment I Metering
* E-Meter / Heating Counter / Smart Meters / PV Converter I Outdoor
* ATM & POS systems / Survei
