V6108 - 40-Segment Static LCD Driver

EM Microelectronic

Datasheet Details

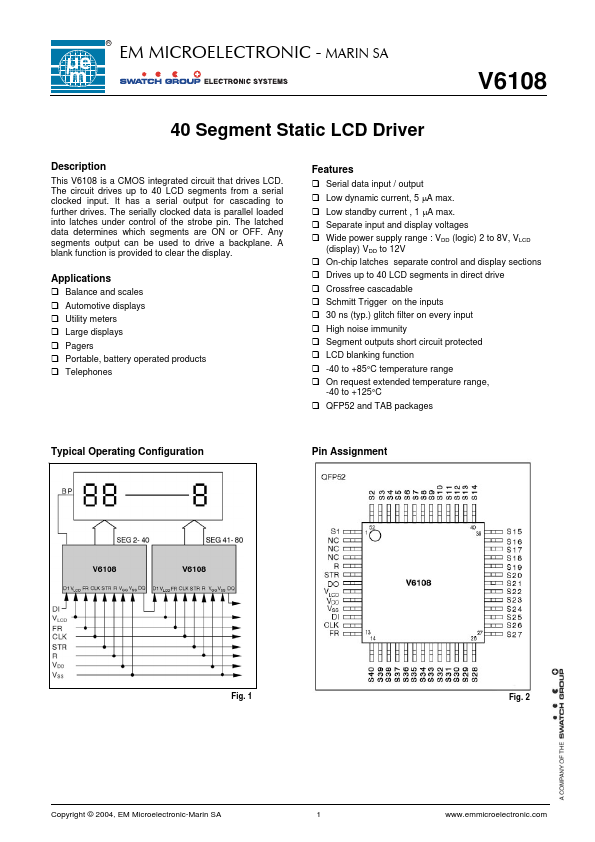

This V6108 is a CMOS integrated circuit that drives LCD.

Serial data input / output Low dynamic current, 5 µA max. Low standby current , 1 µA max. Separate input and display voltages Wide power supply range : VDD (logic) 2 to 8V, VLCD (display) VDD to 12V On-chip latches separate control and display sections Drives up to 40 LCD segments in direct drive Crossfree cascadable Schmitt Trigger on the inputs 30 ns (typ. ) glitch filter on every input High noise immunity Segment outputs short circuit protected LCD blanking function .
