V6123 Datasheet - EM Microelectronic

Mux LCD Driver

V6123 Features

* Very simple 1-bit interface (see Fig.1) V6123 mux mode 2 with 2 rows and 58 columns V6123 mux mode 4 with 4 rows and 56 columns V6123 mux mode 8 with 8 rows and 52 columns Very simple1-bit interface, reduced to its simplest form Frame frequency on chip by internal RC oscillator Voltage bias and mux

V6123 General Description

The V6123 is low multiplex LCD driver. The 2, 4 and 8 way multiplex is digitally programmable by the command byte. The display refresh is handled on chip by an internal RC oscillator via 1 selectable 8 x 60 RAM which holds the LCD content driven by the driver. LCD pixels (or segments) are addressed .

V6123 Datasheet (727.99 KB)

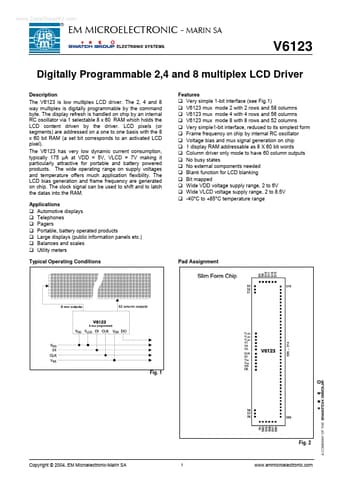

Preview of V6123 PDF

Datasheet Details

Part number:

V6123

Manufacturer:

EM Microelectronic

File Size:

727.99 KB

Description:

Mux lcd driver.
