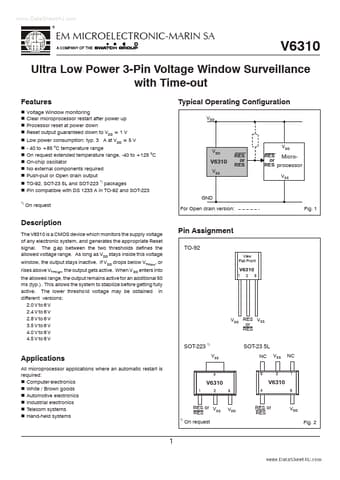

V6310
Features n n n n n n n n n Voltage Window monitoring Clear microprocessor restart after power up Processor reset at power down Reset output guaranteed down to VDD = 1 V
- 40 to +85 OC temperature range On request extended temperature range, -40 to +125 OC On-chip oscillator No external ponents required Push-pull or Open drain output
1)
Typical Operating Configuration
VDD n Low power consumption: typ. 3 m A at VDD = 5 V VDD VDD RES or RES RES Microor RES processor VSS
VSS n TO-92, SOT-23 5L and SOT-223 packages n Pin patible with DS 1233 A in TO-92 and SOT-223 GND
1)
On request
For Open drain version:
Fig. 1
Description
The V6310 is a CMOS device which monitors the supply voltage of any electronic system, and generates the appropriate Reset signal. The g ap between the two thresholds defines the allowed voltage range. As long as VDD stays inside this voltage window, the output stays inactive. If V DD drops below VTHlow, or rises above VTHhigh, the output gets active. When...
