LT-8250-03, PROGRAMMABLE FREQUENCY SYNTHESIZER

DATA SHEET LT-8250-03 PROGRAMMABLE FREQUENCY SYNTHESIZER GENERAL .
The LT-8250-03 is a ruggedized synthesizer in a module mount package, that produces a programmable signal between 5000 and 8250 MHz.

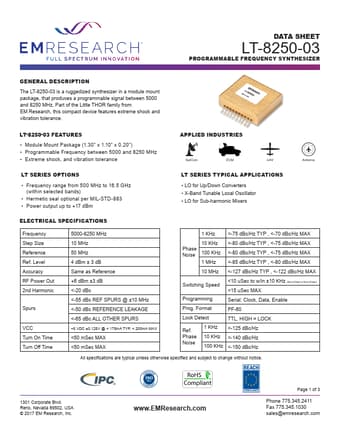

datasheet Preview Page 1 from Datasheet4u.com

LT-8250-03-EMResearch.pdf

LT-8250-03 Datasheet Preview — Preview of LT-8250-03 PDF

Datasheet Details

Part number:

LT-8250-03

Manufacturer:

EM Research

File Size:

345.92 KB

Description:

PROGRAMMABLE FREQUENCY SYNTHESIZER

Features

* extreme shock and vibration tolerance. LT-8250-03 FEATURES APPLIED INDUSTRIES
* Module Mount Package (1.30” x 1.10” x 0.20”)
* Programmable Frequency between 5000 and 8250 MHz
* Extreme shock, and vibration tolerance SatCom ECM UAV Airborne LT SERIES OPTIONS

Applications

* LO for Up/Down Converters
* X-Band Tunable Local Oscillator
* LO for Sub-harmonic Mixers ELECTRICAL SPECIFICATIONS Frequency Step Size Reference Ref. Level Accuracy RF Power Out 2nd Harmonic Spurs VCC Turn On Time Turn Off Time 5000-8250 MHz 10 MHz 50 MHz 4 dBm ± 3 dB Sa
