5021D-D15 Datasheet - EMCORE

5021D-D15 18GHz 65us Max External Fiber Delay Line System

5021D-D15-XXXXXX Delay Line, 18 GHz, SMA, Delay Time to 65 μs Note1: XXXXXX designates required delay time. Example: 5021D-D15-062550 is an 18 GHz system with 62.55 μs delay MICROWAVE Laser Safety This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR). .

5021D-D15 Features

* Bandwidth to 18 GHz

* High-Dynamic-Range

* -40 to +65°C

* Delays to 65 Microseconds

* Flat Frequency Response

* Low Phase Noise The 5021D-D15, 18 GHz fiber optic delay line delivers unmatched performance for radar testing, signal processing, phased

5021D-D15-EMCORE.pdf

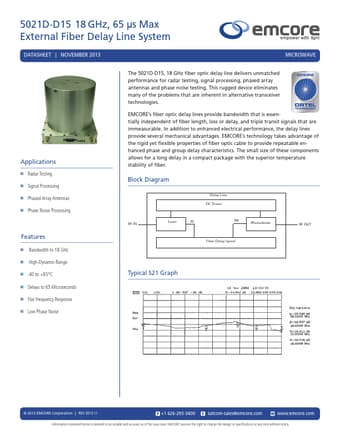

Preview of 5021D-D15 PDF
5021D-D15 Datasheet Preview Page 2 5021D-D15 Datasheet Preview Page 3

Datasheet Details

Part number:

5021D-D15

Manufacturer:

EMCORE

File Size:

567.35 KB

Description:

18ghz 65us max external fiber delay line system.
