5021TR-E - 22GHz 1310nm DFB Transceiver

Datasheet Summary

Description

This product meets the appropriate standard in Title 21 of the Code of Federal Regulations (CFR).

FDA/CDRH Class 1M laser product.

Features

  • br>.
  • Bandwidth to 22 GHz.
  • Cooled, Isolated Direct-Mod DFB Laser.
  • High-Dynamic-Range.
  • -40 to +65°C.
  • 1310 nm.
  • Flat Frequency Response.
  • Low Phase Noise.
  • CE Certified Typical S21 Graph © 2013 EMCORE Corporation | REV 2013.11 +1 626-293-3400 satcom-sales@emcore. com www. emcore. com Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specificati.

📥 Download Datasheet

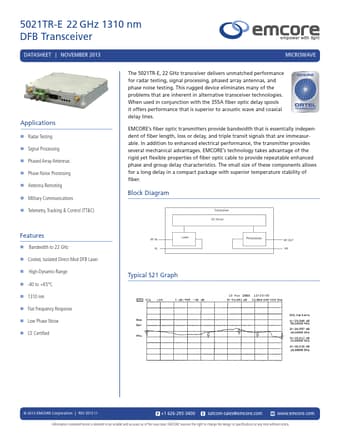

Datasheet preview – 5021TR-E

Datasheet Details

Part number 5021TR-E
Manufacturer EMCORE
File Size 566.95 KB
Description 22GHz 1310nm DFB Transceiver
Datasheet download datasheet 5021TR-E Datasheet
Additional preview pages of the 5021TR-E datasheet.

📁 Similar Datasheet

Other Datasheets by EMCORE
  • 5021TR-A - 3GHz 1310nm DFB Transceiver
  • 5021TR-B - 7GHz 1310nm DFB Transceiver
  • 5021TR-C - 13GHz 1310nm DFB Transceiver
  • 5021TR-D - 18GHz 1310nm DFB Transceiver
  • 5021D-A11 - 3GHz 250ns Max Internal Fiber Delay Line System
  • 5021D-A13 - 3GHz 35us Max External Fiber Delay Line System
  • 5021D-A15 - 3GHz 65us Max External Fiber Delay Line System
  • 5021D-B11 - 7GHz 250ns Max Internal Fiber Delay Line System

Full PDF Text Transcription

Click to expand full text
5021TR-E 22 GHz 1310 nm DFB Transceiver DATASHEET | NOVEMBER 2013 MICROWAVE Applications „ Radar Testing „ Signal Processing „ Phased Array Antennas „ Phase Noise Processing „ Antenna Remoting „ Military Communications „ Telemetry, Tracking & Control (TT&C) The 5021TR-E, 22 GHz transceiver delivers unmatched performance for radar testing, signal processing, phased array antennas, and phase noise testing. This rugged device eliminates many of the problems that are inherent in alternative transceiver technologies. When used in conjunction with the 355A fiber optic delay spools it offers performance that is superior to acoustic wave and coaxial delay lines.
