7820A CATV Optical Receiver

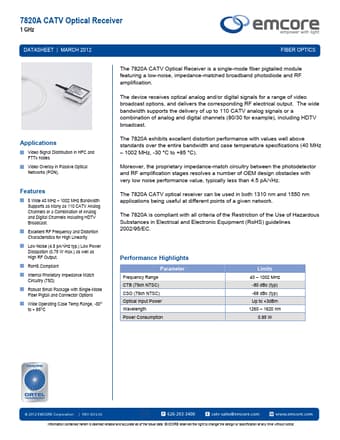

7820A CATV Optical Receiver 1 GHz DATASHEET | MARCH 2012 FIBER OPTICS The 7820A CATV Optical Receiver is a single-mode fiber pigtailed module featuring a low-noise, impedance-matched broadband photodiode and RF amplification. The device receives optical analog and/or digital signals for a range of video broadcast options, and delivers the corresponding RF electrical output. The wide bandwidth supports the delivery of up to 110 CATV analog signals or a combination of analog and digital channels .

7820A Features

* 5 Wide 40 MHz

* 1002 MHz Bandwidth Supports as Many as 110 CATV Analog Channels or a Combination of Analog and Digital Channels Including HDTV Broadcast. Excellent RF Frequency and Distortion Characteristics for High Linearity. Low Noise (4.5 pA/√Hz typ.) Low Power Dissipation (0.75 W max.)
