EN25QH64A-2A 64 Megabit 3V Serial Flash Memory

EON

Description

EN25QH64A (2A) preliminary EN25QH64A 64 Megabit 3V Serial Flash Memory with 4Kbyte Uniform Sector .
The device is a 64 Megabit (8,192K-byte) Serial Flash memory, with advanced write protection mechanisms.

📥 Download Datasheet

EN25QH64A-2A Datasheet Preview — Preview of EN25QH64A-2A PDF

Datasheet Specifications

Part number: EN25QH64A-2A
Manufacturer: EON
File Size: 1.96 MB
Datasheet: EN25QH64A-2A-EON.pdf
Description: 64 Megabit 3V Serial Flash Memory

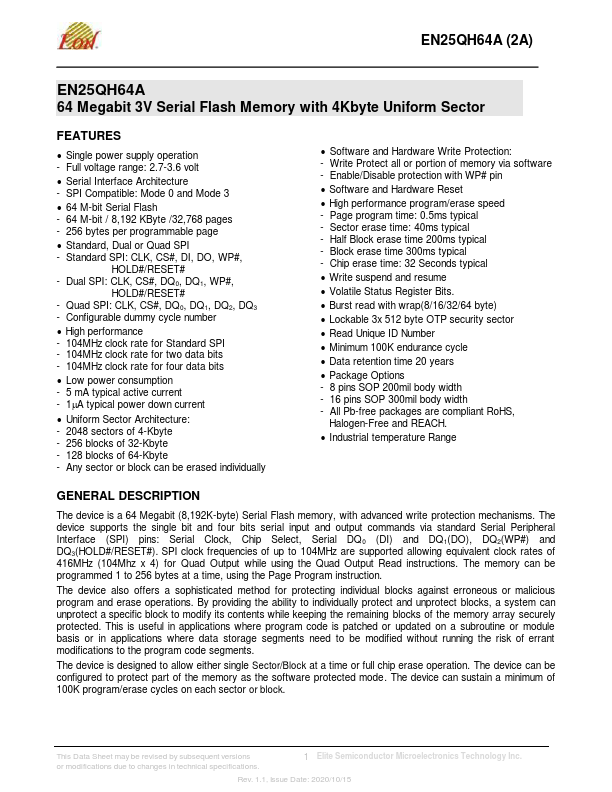

Features

* Single power supply operation - Full voltage range: 2.7-3.6 volt
* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3
* 64 M-bit Serial Flash - 64 M-bit / 8,192 KByte /32,768 pages - 256 bytes per programmable page
* Standard, Dual or Quad SPI - Standard SPI: CLK, CS

Applications

* where program code is patched or updated on a subroutine or module basis or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments. The device is designed to allow either single Sector/Block at a time or full chip
