B32653, (B32651 - B32656) Metallized Polypropylene Film Capacitors

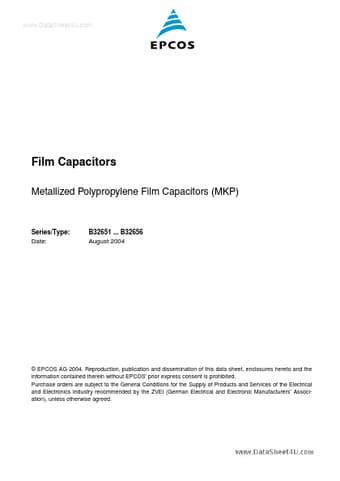

www.DataSheet4U.com Film Capacitors Metallized Polypropylene Film Capacitors (MKP) Series/Type: Date: B32651 B32656 August 2004 © EPCOS AG 2004..

datasheet Preview Page 1 from Datasheet4u.com

B32653_EPCOS.pdf

B32653 Datasheet Preview — Preview of B32653 PDF

Datasheet Details

Part number:

B32653

Manufacturer:

EPCOS

File Size:

0.98 MB

Description:

(B32651 - B32656) Metallized Polypropylene Film Capacitors

Features

* High pulse strength High contact reliability Small dimensions Terminals Parallel wire leads, lead-free tinned Special lead lengths available on request Dimensional drawing Dimensions in mm Lead spacing ±0.4 10 15 22.5 27.5 37.5 Lead diameter Type d1 0.6 0.8 0.8 0.8 1.0 B32651 B32652 B32653 B32654

Applications

* TV (S-correction/flyback) Electronic ballasts Climatic Max. operating temperature: 105 °C Climatic category (IEC 60068-1): 55/100/56 Construction Dielectric: polypropylene (PP) Wound capacitor technology with internal series connection for VR ≥1250 VDC Plastic case (UL 94 V-0) Epoxy resin sealing Fe
