B39242B9413K610 SAW filter Bluetooth

and speciﬁcations contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. Unless otherw.

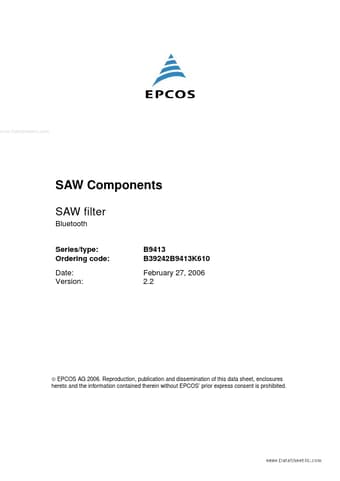

www.DataSheet4U.com SAW Components SAW filter Bluetooth Series/type: Ordering code: Date: Version: B9413 B39242B9413K610 February 27, 2006 2.2 © EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. SAW Components SAW filter Data Sheet Application s Low-loss RF filter for mobile telephone s www.DataSheet4U.com s s s s B9413 2441.75 MHz bluetooth systems Impe.

B39242B9413K610 Features

* s s s s s s s Package size 1.4 x1.1 x 0.4 mm3 Package code QCS5F RoHS compatible Approximate weight 0.003 g Package for Surface Mount Technology (SMT) Ni, gold-plated terminals Electrostatic Sensitive Device (ESD) Pin configuration s 1 s 4 s 2,3,5 Input unbalanced Output unbalanced To be grounded
