B39389-G1965-M100 IF Filter

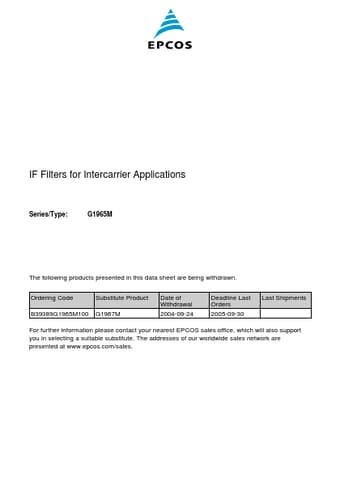

IF Filters for Intercarrier Applications Series/Type: G1965M The following products presented in this data sheet are being withdrawn. Ordering Code B39389G1965M100 Substitute Product G1967M Date of Withdrawal 2004-09-24 Deadline Last Orders 2005-09-30 Last Shipments For further information please contact your nearest EPCOS sales office, which will also support you in selecting a suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales. The follo.

B39389-G1965-M100 Features

* s s s s TV IF filter with Nyquist slope and sound shelf High color carrier level Constant group delay Suitable for CENELEC EN 55020 Terminals s Tinned CuFe alloy Dimensions in mm, approx. weight 1,0 g Pin configuration 1 2 3 4 5 Input Input - ground Chip carrier - ground Output Output Type G 19
