B88069X4380C251 Datasheet - EPCOS

B88069X4380C251 2-Electrode-Arrester

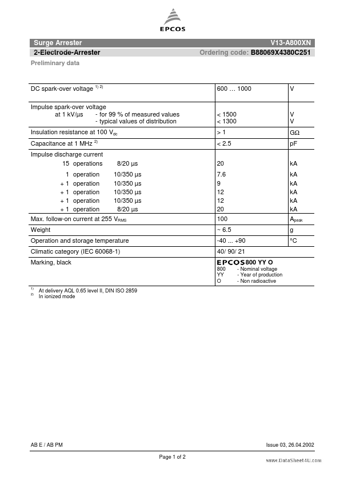

www.DataSheet4U.com Surge Arrester 2-Electrode-Arrester V13-A800XN Ordering code: B88069X4380C251 Preliminary data DC spark-over voltage 1) 2) Impulse spark-over voltage at 1 kV/µs - for 99 % of measured values - typical values of distribution Insulation resistance at 100 Vdc Capacitance at 1 MHz 2) 600 … 1000 V < 1500 < 1300 >1 < 2.5 V V GΩ pF kA kA kA kA kA kA Apeak g °C Impulse discharge current 15 operations 8/20 µs 20 7.6 9 12 12 20 100 ~ 6.5 -40 +90 40/ 90/ 21 800 YY O 800 YY O.

B88069X4380C251 Datasheet (45.39 KB)
