LN32A SAW Components

LN32A Description

www.DataSheet4U.com SAW Components Preliminary Data LN32A SAW Components Low-Loss Filter Preliminary Data LN32A 288,25 MHz Ceramic package QCC12E .

LN32A Features

* q Low-loss IF filter for CDMA2000 base station, req q q q 1,27 1,27 1 2 3 4 ceive path 3,75 MHz usable bandwidth Balanced or unbalanced operation possible Temperature stable Hermetically sealed ceramic SMD package 1,4 12 1,1 2,54 bottom view 11 10 9 8 7 0,8 1,33 side view 7,0 Terminals

📥 Download Datasheet

Preview of LN32A PDF

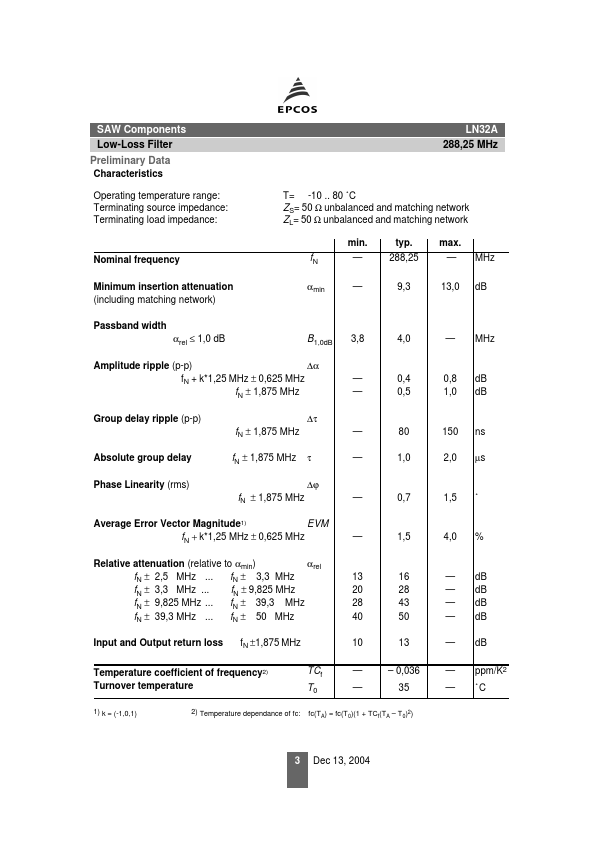

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LN32A
Manufacturer
EPCOS
File Size
85.97 KB
Datasheet
LN32A_EPCOS.pdf
Description
SAW Components
